LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
Specifications
Brand Name :
ETON
Model Number :
KT10S
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Application :
LED lights, electrical products, household appliance
Power supply :
220AC 50HZ 1.5KW
Dimension :
1490*2020*1650mm
Pcb thickness :
0.5-5 mm
Warranty :
1 year
Condition :
New
Weight :
2080KG
Mounting speed :
48000 CPH(Optimal speed)
Description

New innovation Integrated module 10 heads SMT pick and place machine

Market

Our products are exported to more than 30countries & regions

Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc

LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent

Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

Machine application

LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module

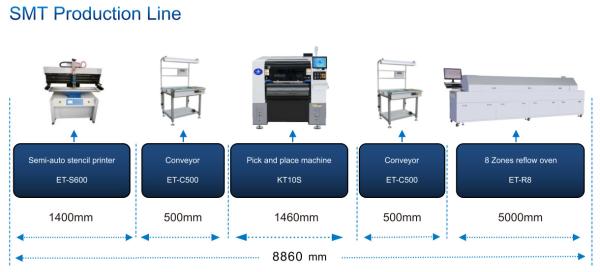

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

LED Powder Driver SMT Pick And Place Machine With 10 Heads Integrated Module
