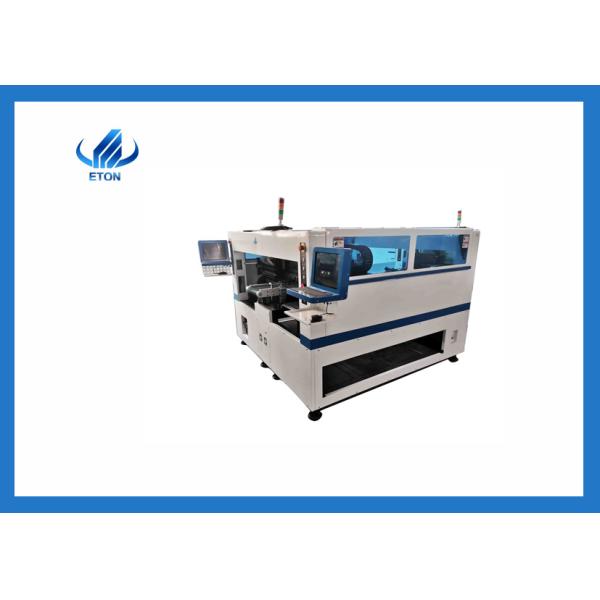

Flexible Strip Magnetic Desktop Pick And Place Machine 200000CPH High Speed
Flexible Strip Magnetic Desktop Pick And Place Machine 200000CPH High Speed
Specifications
Brand Name :
ETON
Model Number :
HT-T9
Place of Origin :
CHINA
MOQ :
1 set
Price :
EXW USD 95000/sets
Payment Terms :
T/T
Supply Ability :
50 sets per mouth
Delivery Time :
30 days after deposit
Packaging Details :
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
name :
pick and place machine
components :
LED 3014/3020/3528/5050 resistor capacitors
feeders :
64 PCS
nozzles :
64 PCS
speed :
200000CPH
PCB size :
250mm*any length
Description

LED light 5m 50m flexible strip magnetic pick and place machine

Features

Producing with 2~4 types of materials with high capacity,available for 5m,50m or any length of flexible strip and roll to roll.

dual-arm four module ,15 nozzles ,for each mounting part ,part A /B/C/D can be mounted separatly or synchronously.

Calibration automatically,high precision,available for RGB.

Strong independent research and development capability

Exclusive patent technology :group to pick and group to mount.

Motionj control card module 1 set R&D by ETON.

Electrical control R&D by ETON.

Vision for the flight identification ,mark correction

Product presentation

High Speed: Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 64 feeders station and 64 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.

Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.

Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.


Flexible Strip Magnetic Desktop Pick And Place Machine 200000CPH High Speed

Technical parameter

HT-T9
PCB PCB length width 250mm*any length
PCB thickness 0.5~1.5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
O.S. system Windows 7
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

 No.of camera

5 sets of imported camera

Vision alignment,mark correction
Mounting precision 0.02mm(repeat precision)
Mounting height <15mm
Mounting speed 100000~150000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.2mm
No.of feeders station 64PCS
No.of nozzles 64PCS
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Belt drive
Transmission speed >500mm/sec
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
Position mode Optical
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor

Remarks:

1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2.Delivery time: 30 days after deposit.

3.Warranty: 1 year.(including spare parts)
