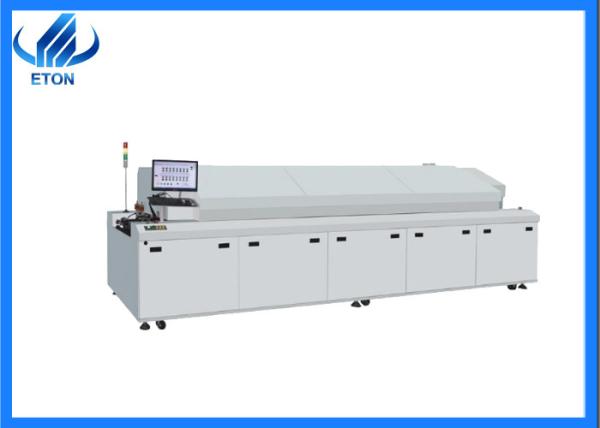

High Speed 38kw SMT Pick And Place Machine PCB Reflow Soldering

High-quality and competitive SMT pick and place machine PCB reflow soldering

Technical parameter

Features

No.1 The unique advanced long life heating system

1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2. Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3. Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

No.2 Smooth and reliable transmission system

1. The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

4 .Failure diagnosis and sound light alarm.

Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

Company information

Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise, double soft enterprise. We specialize in SMT high-speed pick and place machine about ten years .

Certificate

Won a number of technical patents, such as: 9 invention patents, 12 software copyrights, 112 practical patents , etc.

Partner

Our company has been engaged in the research and development and production of SMT high-speed placement machines for ten years, and the products have been exported to more than 20 countries and regions such as South Korea, Vietnam, India, Turkey, Egypt, and Tunisia.

Delivery

Standard vacuum wooden box packaging

Air freight: small parts or urgent parts

Shipping: suitable for transportation of large or heavy machinery

Land transportation: according to customer requirements

FAQ

What is the direction of transmission of machines?

The transmission direction of this machine is both direction

Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

What is the delivery date?

We will delivery the goods after 30 days' deposit.

Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.

What is your payment terms?

30% deposit in advance and 70% balance before shipment.

What can you do for me?

SMT Machines and Solution, professional Technical Support and Service.
