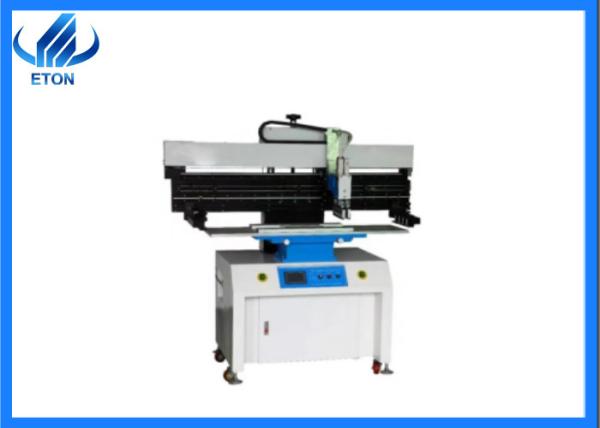

Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200
Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200
Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200
Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200
Specifications
Brand Name :
ETON
Model Number :
ET-S1200
Certification :
CCC, CE, SIRA
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Standard vacuum wooden box packaging
Model :
ET-S1200
Printing area :
1200×250 mm
Plate Area :
1250×300 mm
Stencil Frame Size :
470×370 mm～1300×550 mm (L×W)
pitioning way :
positioning pin
PosScraper Speed :
0-100mm/sec
Description

High-quality low-cost and efficient semi-automatic PCB board printing machine

Product description

It is suitable for the printing of soft and hard circuit printing and the liquid photosensitive solder resist green paint printing of multilayer circuit boards, and can be used for printing fine circuits, etc. Can be customized for different structures and processes, low production cost, strong applicability.

Features

The governor motor drive scraper, combining precision linear guide, ensure the printing precision
Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement
The scraper holder can adjust forward and backward, to select the suitable printing position
Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing
Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick
Can be set unidirectional and bidirectional multiple printing methods


Specifications

Model ET-S1200
Printing area 1200×250 mm
Plate Area 1250×300 mm
Stencil Frame Size 470×370 mm～1300×550 mm (L×W)
Positioning way positioning pin
Scraper Speed 0-100 mm/sec
Power 220V single phase, 50/60 HZ
Power Consumption 120W
PCB plate thickness 0.2-2.0 mm
Plate Trimming Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision +/- 0.05 mm
Air supply 5-7 KGF/cm2
Weight 360 kg
Dimension (L)1600 x(W)900 x(H)1650 mm

Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200


Company information


Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200

Certificate

Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200

Positioning Pin 100mm/sec PCB Board Printing Machine 120W ET-S1200

FAQ

1,How many cameras does the machine have?

There are two sets of imported cameras. Using exclusive patent technology: vision for the flight identification, Mark correction.

2,What is the direction of transmission of machines?

The transmission direction of this machine is both direction.

3. What kind of driving mode does the XYZ axis adopt?

X axis is magnetic liner motor, Y axis and Z axis is servo motor, very good performance and high accuracy.
