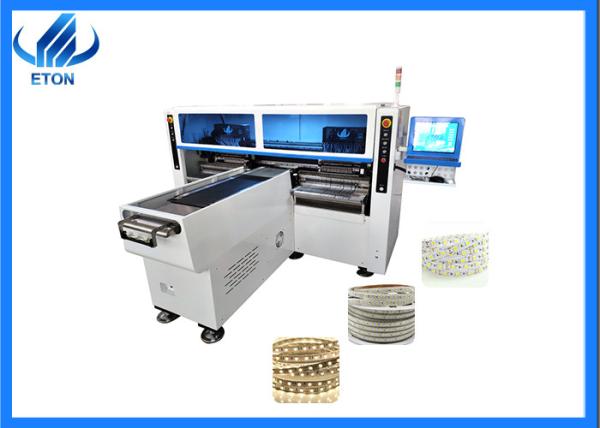

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH
High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH
Specifications
Brand Name :
ETON
Model Number :
HT-T9
Certification :
CCC, CE, SIRA
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
PCB Thickness :
0.5-1.5mm
Mounting mode :
Group to take and group to mount
No. of camera :
5PCS(Digital camera)
Mounting precision :
+0.02mm( repeat precision)
Mounting speed :
200000-250000CPH
No. of nozzles :
68PCS
Description

Good quality, good service, ultra-high-speed wireless pick and place machine

Product description

Vision alignment, Mark correction

Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc

Application: flexible strip( any length)

Features

Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously. The capacity reach 250000CPH

Producing 4 types materials at the same time with high capacity, available for 5 M,50 M or any length of flexible strip and roll to roll.

With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology, it can be automatically corrected, available for RGB

Exclusive patent technology:group to take and group to mount

Technical parameter

HT-T9 pick and place machine
Dimension Length* Width* Height 3100mm*2300mm *1550mm
Total weight 1700kg
PCB PCB Size 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Vacuum adsorption, cylinder splint, adjustable track width
Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 5PCS(Digital camera)
Vision alignment, Mark correction
Mounting precision +0.02mm( repeat precision)
Mounting speed 200000-250000CPH
Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
No. of feeders station 68PCS
No. of nozzles 68PCS
XYZ Axis drive way High-end magnetic linear motor + servo motor
Feeding way Electric feeder with double motor

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

Company information

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

Certificate

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

Packaging and payment

vacuum wooden boxes packing

Terms of payment: 30% depositing on the date of signing contract,70% payment before deliver

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

After sales service

Warranty period: one year

Provide latest information about technology and equipment

Free software upgrade

FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH
