1.2m Tube 6KW 200000cph Smt Line Lighting Machine
1.2m Tube 6KW 200000cph Smt Line Lighting Machine
Specifications
Brand Name :
ETON
Model Number :
HT-F9
Certification :
CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
50 PCS PER MONTH
Packaging Details :
Wooden case
Name :
Pick and place machine
Moduel :
HT-F9
Apply to :

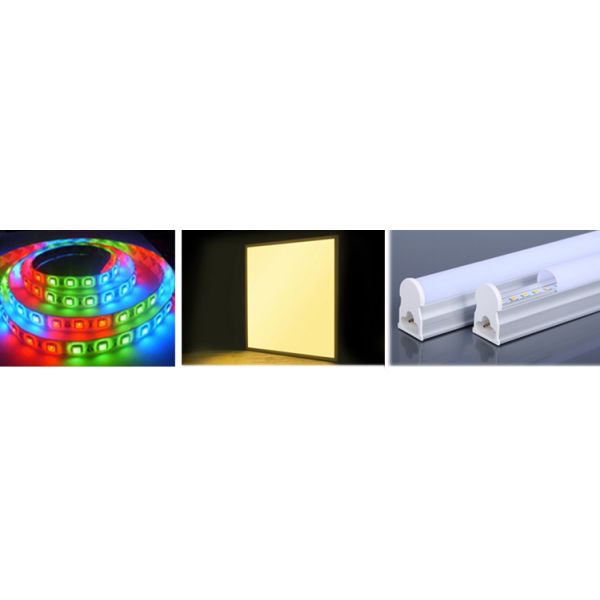

led tube/panel/strip ligthing
Speed :
200000 cph
Weight :
1700 kg
Mounting height :
<5mm
Description

Tube smt line automatic making machine

Led lighting more cleaning

The cleanness here does not refer to the lamp itself, but because it does not have ultraviolet or infrared light, so when the lamp is turned on in summer, there will be many small mosquitoes flying around the lamp, and of course it will not be in the lamp. It leaves stains such as the corpses of mosquitoes on it, so that the interior looks cleaner.

Tube machine parameter

Max PCB length 1200 mm
Max PCB width 330 mm
Mounting mode Group to take and group to mount
No. of camera 5 pcs digital camera, vision alignment, mark correction
No. of feeder station 68 pcs
No of nozzles 68 pcs
Position mode Optical
Dual arm four module, capacity reach 200000 chip per hour

Machine maintain

  1. Check the cushioning action of the nozzle clamp. If the movement is not smooth, apply a thin layer of lubricant. If the clamp is loose, tighten it.
  2. Move the lens to clean dust and residue on the lens.
  3. X-axis lead screw Check the lead screw for debris or residue, and clean it if necessary. X-axis guides check whether the lubricating grease is hardened and the residue adheres.
  4. Y-axis lead screw Check the lead screw for debris or residue, and clean it if necessary. Check the Y-axis guide for hardening of grease and adhesion of residues.

Service

  1. Free training and install
  2. One year warranty
  3. Machine wooden package

Finished products show
