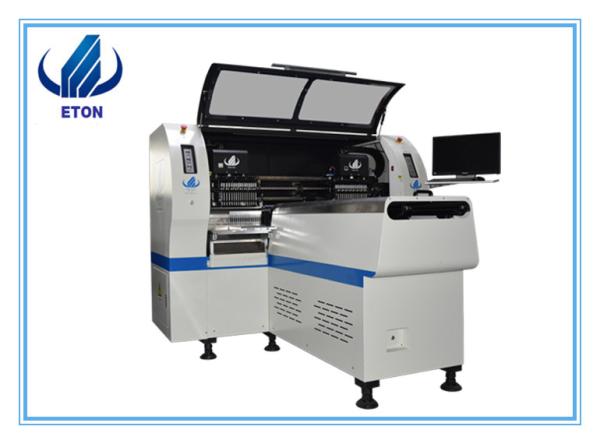

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine
Specifications
Brand Name :
ETON
Model Number :
HT-XF
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1
Price :
US $75,000-76,000 / Units
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
15 days
Packaging Details :
Standard export package(It also can be adjusted according to customer's requirement)
Dimension :
2700*1900*1530 mm
Total weight :
1300 KG
PCB Thickness :
0.5-5 mm
Mounting speed :
150000-170000 CPH
Feeder way :
Electronic feeder
Power :
220 AC 50HZ
Description

1. Product Description

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

Apply to the SMT machine, PCB, LED hard light board and LED soft lamp strip etc.

Apply to mounting LED 3014/3020/3528/5050/5730 etc.

Apply to tube, bulb, strip, lamp, panel, ceiling light, down light, diaplay etc.

Mounter speed: 150000~170000CPH

Technical Parameter

smt pick and place machine/led making machine

Dimension Length 2700MM
Width 1900MM
Height 1400MM
Total Weight 1300kg
PCB PCB length width Max:300*1200mm Min:300*60mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 34PCS
No. of nozzles 34PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 150000-170000 CPH(optimum)
Components LED 3014/3020/3528/5050/5730 etc.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5kw
Operating Environment 23℃±3
Conveyor Transmission Max Length:1200mm
Transmission Speed >500mm/s
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor

2. Company Information

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

Company profile

Shenzhen Eton Automation Equipment Co.,Ltd is a national high-tech enterprise which specializes in automatic high-speed SMT pick and place machines for customers, combining R&D, production, sales and service as one

Company five level management policies: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

  • Eton Purpose: To create value for customers, creating benefits for society.
  • Eton Mission: Professional, Excellent technology, Share the results.
  • Eton goal: To create a national brand, build world-wide top brand Chinese enterprise.
  • Eton purpose: To create value for customers, creating benefits for society

Our advantages

Date Analysis Compared with other Manufacturers

Manufacturers/Parameter Other company's F130 Other company's 5M168 Our Eton's HT-E8 mounter Data Comparison
Speed 15000CHP 18000CHP

80000CPH

 4 to 6 times higher than others
Nozzle 4PCS 6PCS 18PCS 3 to 5 times higher than others
Precision 0.03mm 0.03mm 0.02mm More Precise
Patent ------- ------- Technology Patents Global First
Cost Performance 20% 30% 100% 3 to 5 times higher than others
Screw Unknown brand Unknown brand Fuji Japanese famous brand
motor Unknown brand Unknown brand Kuroda Japanese famous brand
camera Unknown brand Unknown brand IDS German famous brand

Certification

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

Our Service

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

1.Pre-Sales Service

  • 24 show online, ready to answer for you
  • Professional and detailed technical solutions
  • View our factory.

2.Sales Service

  • Warranty: one year, offer the extended warranty service.
  • Training how to install the machine, training how to operate the machine..

3.After-Sales Service

  • Engineers available to service machinery overseas.
  • Visit customers regularly and gather information
  • Provide latest information about technology and equipment
  • Our company has the office in Delhi, can provide convenient and fast service

Delivery information

  • Machine is completed, ready for work and mature; each machine is 100% tested well, QC passed
  • Delivery time: 15 days after payment
  • Package: Standard export package(It also can be adjusted according to customer's requirement)

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting MachineHT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

Why choose us

HT-XF: The LED plcement machine production line configuration and product optimization For SMD Mounting Machine

  • We have our own top R & D team
  • Leaders of smt pick and place machine industry, “National high-tech enterprise” certification.
  • Each machine is 100% tested well, QC passed.( Many parts are imported)
  • Product has a good reputation in the market
  • Perfect service system
  • Stand on customer's point of view to help customers, look forward to establishing business relations

If you are interested in our machine,kindly contact us.we look forward to doing business with you!
