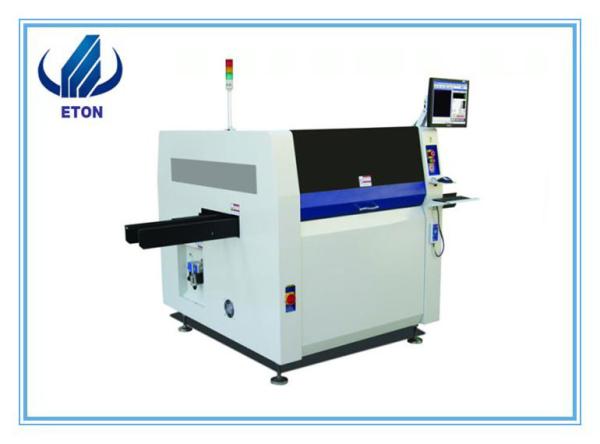

Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Full - Automatic LED SMT Stencil Printer Machine Stainless Steel PC Control ET-F400
Specifications
Brand Name :
ETON
Model Number :
ET-F400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3100USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
Full-automatic Printer
Product name :
ET-F400
PCB Maximum Size :
400*340MM
Dimension :
1220(L)X1355(W)X1500(H)MM
Weight :
1000KG
Description

Good Quality Automatic LED SMT Stencil Printer Machine ET-F400

What is the Full-automatic printer?

Modern solder paste printing machines are generally composed of plates, tin paste, embossing,

and transmission boards. Its working principle is: firstly, the circuit board to be printed is fixed on

the printing positioning table, and then the solder paste or the red glue is printed on the corresponding

pad through the steel mesh by the left and right scrapers of the printing machine, and the PCB which

is uniformly printed is passed through. The transfer station is input to the placement machine

for automatic placement.

The automatic printer parameters

 Model ET-F400
Item 　
Screen Frames Min Size 370X370mm
Max Size 737X737mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 400X340mm
PCB Thickness 0.4~6mm
PCB Warpage ＜1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location
P		 Support System Magnetic Pin/Up-down table adjusted/supportblock
by hand
Clamping System side clamping,vacuum nozzle
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Machine 　
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1355(W)X1500(H)mm
Machine Weight Approx:1000Kg

Company’s imformation

Shenzhen Eton Automation Equipment Co., Ltd located in 44th, Building, 5th.Cuigang Industrial

Area, Fuyong, Baoan District, Shenzhen, China. Eton company focus on building national brand

and concentrate on providing customers professional guidance, good quality machines, good sale

services of automatic SMT machines.

With the rapid development of the LED industry, ETON focuses on R&D and continuously enhances

the competitiveness of its placement machines. Now we have successively reached strategic cooperation

with many domestic and foreign companies. And has achieved everyone's unanimous recognition and

praise. In the field of high-speed placement machines has become a leading Chinese brand.
