PLC Control Pick And Place Machine Movement Unloader Vacuum Pcb Loader Durable
PLC Control Pick And Place Machine Movement Unloader Vacuum Pcb Loader Durable
Specifications
Brand Name :
ETON
Model Number :
Vaccum loader
Certification :
CCC
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
4 weeks after payment
Packaging Details :
Wooden case
Product :
pcb suction machine
Warranty :
1 year
PCB size :
L500*W390MM
Dimension :
L600*W950*H120mm
PCB storage :
100 pcs
Operation control panel :
Display control touch screen
Description

Movement Unloader Vacuum Pcb Loader For Pcb Assembly Production Line

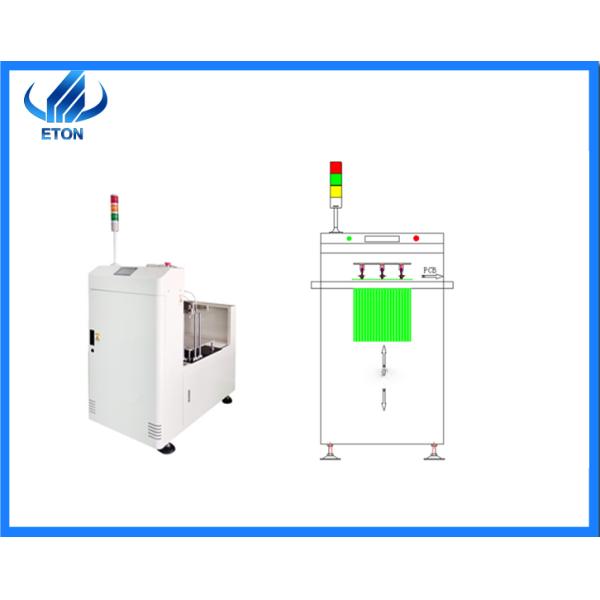

Vacuum loader

Vacuum loader, the machine is mainly suitable for SMT production line of the stack of the bare plate, automatically sent to the backend equipment by means of vacuum adsorption, with functions of automatic upper,can and send machine supporting the use, also can be used when bare plate machine.

Features

  • Control system adopts PLC control, adopt touch screen operation interface.
  • Using vacuum adsorption transfer upper plate down, can be stacked PCB 100pcs.
  • Extension of interval can adjust automatically according to the thickness of PCB.
  • Is equipped with a standard the SMEMA signal port, can even online with any other equipment.
  • The lifting platform is driven by a brake motor, which can be accurately positioned and can be selected as four lifting positions for lifting plates.

Parameter

Item Vacuum loader
Dimension L600*W950*H120mm
PCB size L500*W390MM
PCB storage 100PCS
Rail transfer height 920±30mm
Shipping direction Right to left/left to right
Conveyor belt 7MM flat belt
Conveyor transmission speed 9M/min
Operation control panel Display control touch screen
Controller Mitsubishi PLC programmable controller

Related products

In smt line, there are many machine working for transportation and delivery pcb, such loader, unloader, conveyor, and so on.

We are on sell many kind of smt line, not only above machine, but also pick and place machine, reflow oven, stencil printer, etc.

Provide the most comprehensive service

We attach great importance to the sense of responsibility of our customers. If you choose us, we will give our customers the most thoughtful service before, during and after the sale.

ETON service

Before the sale:

 We will introduce the machine enthusiastically and let our customers understand our products in all aspects.
During the sale: We will provide our customers with the most suitable machine for their production line.

After the sale:

 We have a comprehensive after-sales guarantee process, such as the standard warranty, the free install and training, etc.

PLC Control Pick And Place Machine Movement Unloader Vacuum Pcb Loader Durable

Contact us:

International salesperson:Joy

Whatup/Wechat/Phone:+86-13590151025

Http:www.smtmountingmachine.com

Add:44th.Building,5th.Cuigang Industrial Area, Fuyong, Baoan District, Shenzhen,China
