Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine
Specifications
Brand Name :
ETON
Model Number :
ET-F400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3100USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
Full-automatic Printer
Product name :
ET-F400
PCB Maximum Size :
400*340MM
Dimension :
1220(L)X1355(W)X1500(H)MM
Weight :
1000KG
Description

Full Automatic Solder Paste Printer Machine ET-F400 LED Pick and Place Machine

Technical parameters show

 Model ET-F400
Item 　

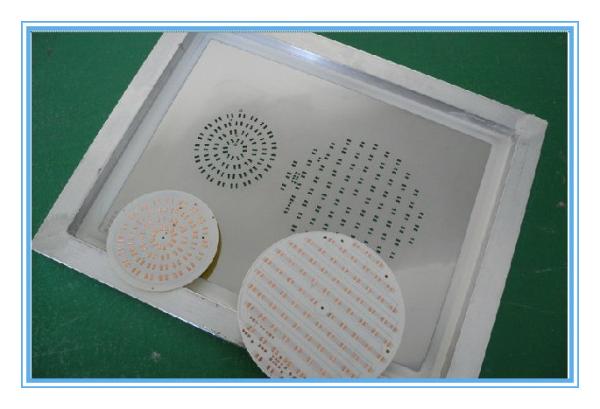

Screen Frames Min Size 370X370mm
Max Size 737X737mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 400X340mm
PCB Thickness 0.4~6mm
PCB Warpage ＜1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock
by hand
Clamping System side clamping,vacuum nozzle
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Machine 　
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1355(W)X1500(H)mm
Machine Weight Approx:1000Kg

The FAQ

Q: What we can do for you?

A: Total SMT Machines and Solution, professional Technical Support and Service.

Q: What is your delivery date?

A: The delivery date is about 20 days after receipt of payment.

Q: What is your payment terms?

A: We Accept T/T,L/C, Paypal And Alipay. 30% Deposit And 70% Balance Before Shipping.

Q: Why choose us?

A: Leading SMT Supplier in China; Professional after-sales service team.
