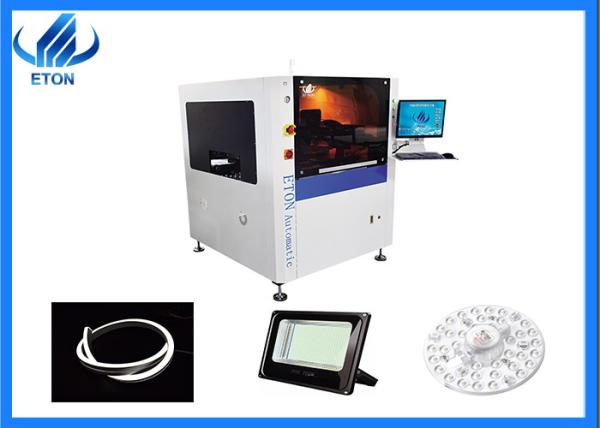

Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine
Specifications
Brand Name :
ETON
Model Number :
ET-F400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3100USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
Full-automatic Printer
Product name :
ET-F400
PCB Maximum Size :
400*340MM
Dimension :
1220(L)X1355(W)X1500(H)MM
Weight :
1000KG
Description

Hot Selling LED Automatic Printer Machine ET-F400 SMT Pick and Place Machine

The davantages of automatic printer machine

1, the adjustment mechanism of the advanced timing belt (adjustable adjustment / high printing speed stability)

2, a variety of positioning methods (different PCBs and devices)

3, the powerful extension of the human-machine interface: (utility and personality balance);

4, the touch screen protective cover: (protection);

5. The scraper holder removal mechanism: (safety/precision);

The parameters of automatic printer machine

 Model ET-F400
Item 　
Screen Frames Min Size 370X370mm
Max Size 737X737mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 400X340mm
PCB Thickness 0.4~6mm
PCB Warpage ＜1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location
P		 Support System Magnetic Pin/Up-down table adjusted/supportblock
by hand
Clamping System side clamping,vacuum nozzle
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Machine 　
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1355(W)X1500(H)mm
Machine Weight Approx:1000Kg

FAQ

1.Is your software interface in English?

English interface and chinese interface are both available.

2.Which counties have your machine exported?

Our machine have expored more than 20 countries, such as India, Egypt, Korea, Turkey, Brazil, Vietnam, and so on.

3.Who is your client?

Such as FSL, ETI, KONKA, OPPLE, MLS are our client. In India, such as RK,Surya, skyquad are our client.
