Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed
Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed
Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed
Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed
Specifications
Brand Name :
ETON
Model Number :
HT-E8D-1200
Place of Origin :
CHINA
MOQ :
1
Price :
FOB USD 81000/sets
Supply Ability :
50 sets per mouth
Delivery Time :
30 days after deposit
Packaging Details :
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Payment Terms :
L/C, T/T
Place of origin :
China
name :
HT-E8D-1200
Warranty :
1 year
Dimension :
3150*2250*1650mm
Total weight :
2000kg
Power :
380AC 50HZ
Power consumption :
8KW
Mounting speed :
80000CPH
Mounting height :
<36mm
Visual camera :
2 sets of imported camera
drive way :
high-end magnetic linear motor +servo motor
Description

Double module magnetic linear motor multifunctional pick and place machine

Dual system,dual module multifunctional mounter,To produce two different products at the same time. drive by high-end magnetic motor and servo motor and feeding way by electric feeder with double motor.

Function & Application
features Exclusive Patented Technology
Dual system,dual module multifunctional mounter.To produce two different products at the same time. Electronic feeder feeding system
Mounting components:LED,capacitors,resistors,IC,shaped components,etc. Vision alignment flight identification,mark correction

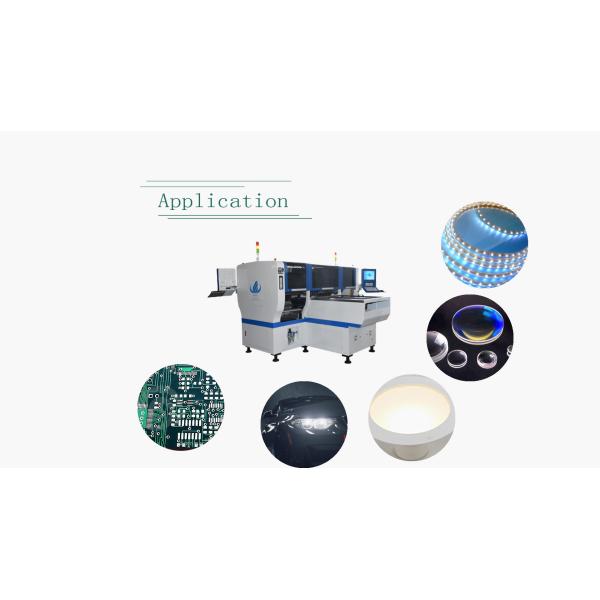

Application: power driver.electric board.lens.linear bulb.household appliance etc. Non-stop material re-loading function
Component:min.size 0402 max.height 36 mm. auto-optimization after coordinates generated ,etc

Technical parameter
PCB
PCB length width Max:1200*300mm min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
O.S.
system Windows7
software R&D independently
display Touch screen monitor
input Keyboard mouse
Feeding system
No. of feeders station Dual mode ,totally 40
No.of nozzles Dual mode,totally 16
Feeding way Electric feeder with double motor

Application industry

Household appliances industry, Auto electronics industry, Power industry, LED industry, intelligent control industry, etc.

Product advantages

1. dual system,dual module machine

2. PCB length width : max 1200*300mm min:100*100mm

3. Exclusive patented technology:Group to picking and separate to placing,Separate to picking and separate to placing.

4. Vision for the flight identification ,mark correction.

5. X,Y,Z axis drive by high-end magnetic linear motor and servo motor.

6. Totally 40 feeders station and 16 nozzles.


Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed

Company Information

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.ETON has created superior value for customers as the outstanding worldwide brand of high speed SMT machine with good reputation .looking forward to the future ,we believe that ETON will seek to better achievement in SMT field and make greater contributions to the industry and society.

Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed

Patented Technology


Electronic feeder feeding system

Vision alignment flight identification,mark correction

Non-stop material re-loading function

Auto-optimization after coordinates generated ,etc.

Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.

Honour show

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.

Packaging & Shipping

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

Auto Rails Cost Effective SMT Pick And Place Machine 16 Heads Designed

Our Services

Attention

1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.

After-sale Service

we will send our engineer to your factory to install machine and training freely.

We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

Remarks

1. Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2. Delivery time: 30 days after deposit.

3. Warranty: 1 year.(including spare parts)
