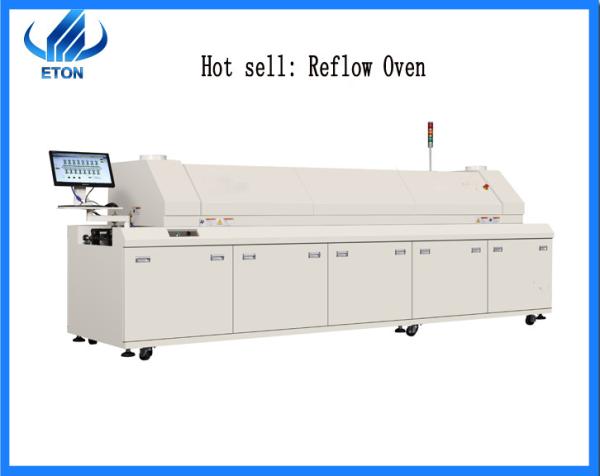

Big Type Hot Air Reflow Oven SMT Mounting Machine 20 Mins Warming Time
Big Type Hot Air Reflow Oven SMT Mounting Machine 20 Mins Warming Time
Specifications
Brand Name :
ETON
Model Number :
ET-R6
Certification :
CCC
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
4 weeks after payment
Packaging Details :
Wooden case
Name :
Reflow Oven
Dimension(L*W*H) :
3600×1000×1490mm
Weight :
700KG
Color :
Computer gray
Temp. setting range :
Room temperature-300℃
Total power :
28kw
Warming time :
About 20 mins
Nozzle plate :
Aluminum Alloy Plate
Description

Big Type Hot Air Reflow Oven SMT Mounting Machine 20 Mins Warming Time

SMT:

SMT is a comprehensive system engineering technology that covers substrates, designs, equipment, components, assembly processes, production accessories and management. SMT equipment and SMT process require stable voltage on the operation site, prevent electromagnetic interference, anti-static, have good lighting and exhaust emission facilities, and have special requirements for operating environment temperature, humidity, air cleanliness, etc. Personnel should also be trained in professional technology.

Six zones reflow oven:

Dimension(L*W*H) 3600×1000×1490mm
Weight 700KG
Color Computer gray

Temp. control:

Temp. setting range Room temperature-300℃
Temp. control method PLC & PC
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃

Control system:

Power supply 5line 3phase 380V 50/60Hz
Total power 28kw
Starting power 28kw
Normal power consumption 4KW
Warming time About 20 mins
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temperature. (extra-high/extra-low temp.)
Board dropped alarm Tower light: Yellow-warming, Green-normal, Red-abnormal

Conveyor system:

Max. Width of PCB 350mm
Mesh belt width 400mm
Transmission Direction L→R(or R→L)
Transmission Net Height 880±20mm
Transmission type Mesh and chain
Range of rail width 0-300mm
Conveyor speed 0-1500mm/min
Auto/manual Lubrication standard
Upper hood method Manual(option:auto)
Fixed rail side Front rail fixed(option: rear rail fixed)
Components high Top and bottom 25mm

Heating system:

Number of heating zones UP 6/BOTTOM6
Number of cooling zones 1
Length of heating zones 2500MM
Heating mode hot air
Cooling Mode Force air

Logistics and delivery:

Our machine packaging will have a fixed packaging process:

First apply a film to the machine.
Secondly drain the air from the film and vacuum pack it.
Then use the rope and bracket to dictate the machine on the board.
Finally packed in wooden box.

With the four step, it is very stable and couldn’t move radon.

Cooperation:

Wish to establish long-term stability and contact and cooperation with you.

Website:www.smtmountingmachine.com

Add: 44th.Building,5th.Cuigang Industrial Area, Fuyong, Baoan District, Shenzhen,China
