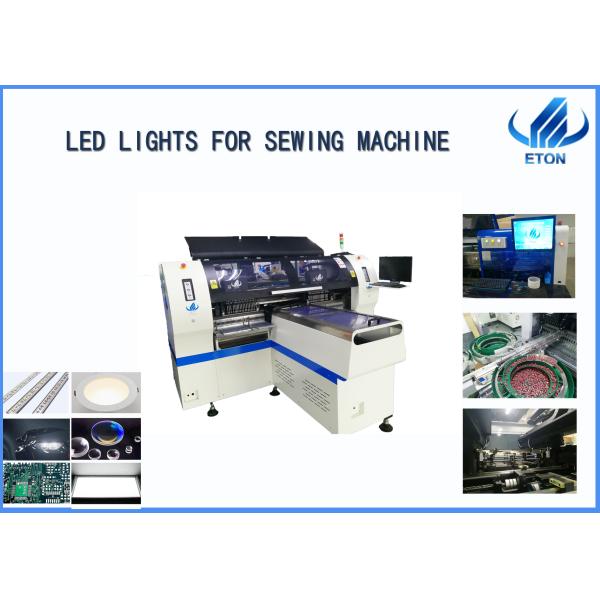

High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine
Specifications
Brand Name :
ETON
Model Number :
HT-F7
Place of Origin :
CHINA
MOQ :
1
Price :
EXW USD 65000/sets
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per mouth
Delivery Time :
30 days after deposit
Packaging Details :
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Certification :
ccc，ce,rise
Warranty :
1 year
Dimension :
2700*2450*1530mm
Total weight :
1400kg
Power :
220AC 50HZ
System :
windows7
Software :
R&D independently
Visual camera :
5 sets of imported camera
Power consumption :
5KW
PCB length width :
max 1200*330mm min 80*330mm
PCB thickness :
0.5~5mm
Mounting speed :
100000~150000CPH
Description

smt pick and place machine fast easy operate low cost Perfect economic model

Features

Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.

Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separatly or synchronously.

Exclusive patent technology :group to take and group to mount .

High speed

producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separatly or synchronously.

Application of exclusive patent technology: group to take and group to mount ,mounting speed around 150000CPH.

It saves a lot of time, space and manpower cost.

High precision

With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology, combined with optical positioning method, accurately identify the position of PCB board and quickly and accurately mount components.

Good durability

Using High Stability Electronic Dual Motor

The wear resistance of screw rod is not easy to deviate and has high accuracy.

The guide rail has strong bearing capacity and high stability.

High-quality hardware configuration for 24-hour machine operation.




High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine

Technical parameter

HT-F7
PCB PCB length width Max:1200*330mm min:80*330mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
O.S. system Windows 7
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

 No.of camera

5 sets of imported camera

Vision alignment,mark correction
Mounting precision 0.02mm(repeat precision)
Mounting height <15mm
Mounting speed 100000~150000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.2mm
No.of feeders station 72PCS
No.of nozzles 36PCS
Power 220AC 50HZ
Power consumption 5KW
Conveyor transmission Belt drive
Transmission speed >500mm/sec
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
Position mode Optical
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor

Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.

High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine

Certificate of honor

High Capacity SMT Pick And Place Machine , SMT Assembly Equipment smt placement machine

Attention


1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.

FAQ

1. How is your service?

If you buy our machine,we will send our engineer to your factory to install machine and training freely.

2. What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.

3. How can you make sure we will receive the machine with high quality?

Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
