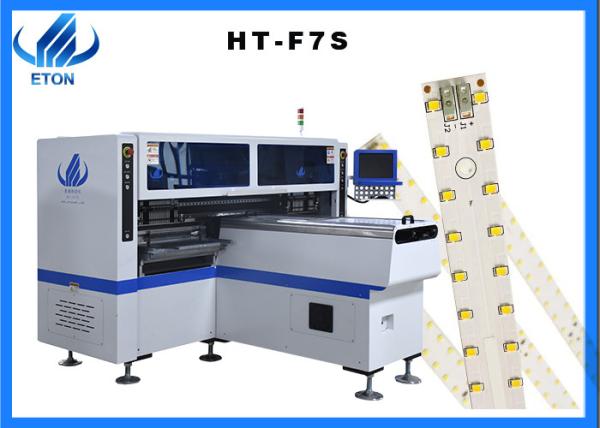

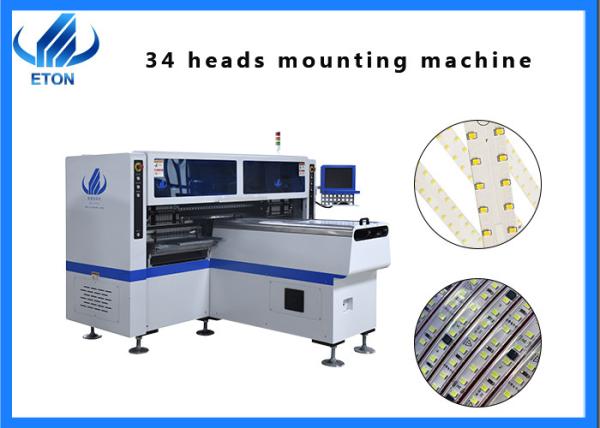

34 heads with LED tube smd mounting pick and place machine in production line

F7S

1.34 Suction nozzle, 68 Feida material stations

2. Suitable for 0.6, 0.9, 1.2 m tubes and 0.5, 1 m soft light strips

3. RGB can be mounted, and the production capacity exceeds 150K

4. Linear motor is adopted for X and Y axis, which makes the speed faster, the mounting accuracy higher and the service life longer

5. Visual alignment+MARK correction, stable mounting.

Technical parameter

Model HT-F7S
Dimension
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separately placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 sets ( Digital camera)
Vision alignment, MARK correction
Repeat Mounting Precision ±0.02mm(Repeat precision)
Mounting Height ≦5mm
Mounting Speed 150000~180000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space 0.5mm
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor Transmission Max Length :1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Positioning way Optical
Air supply 0.4-0.6mpa (4-6kgf/cm²) 150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ Servo motor
Feeding System
No. of Feeders Station 68 PCS
No. of head 34 PCS
Feeding way Electric feeder with double motor

34 heads with LED tube smd mounting pick and place machine in production line
