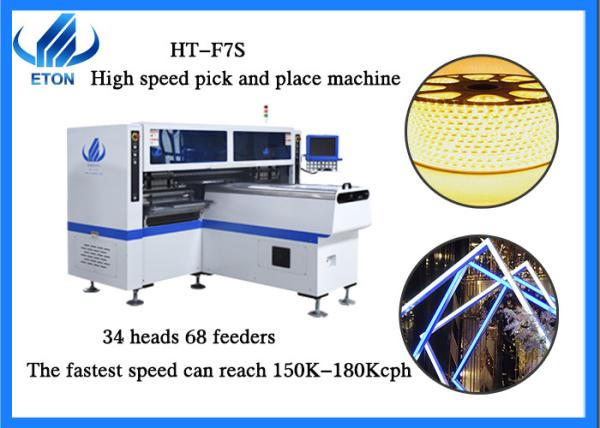

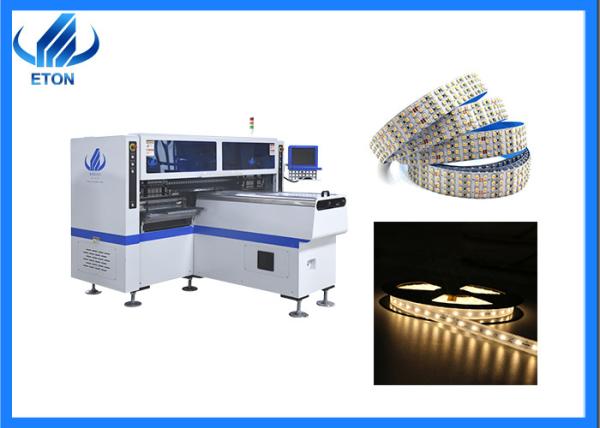

SMT pick and place machine with LED panel

Product description

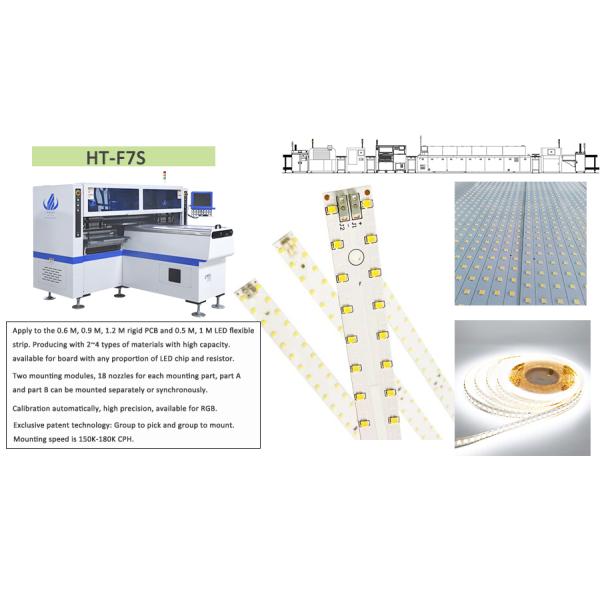

Applicable to 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip

Using ETON R&D adjustable placement head, mounting head and feeder spacing can be flexible adjusted

Ultra-high-speed placement capability, the ultimate cost-effective with 68 placement heads, the optimal capacity is 170,000CPH

Wide applicability and flexibility, can produce 4 different materials at the same time without affecting high productivity.

Calibration automatically, high precision, avaliable for mounting RGB

Intelligent flight recognition function,no pause to detect the presence or absence of components and the adsorption state, to prevent placement errors.

Parameter

Exhibition:

Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:

l Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.;

l Domestic: Guangzhou Guangya Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.

Reflow soldering process for mounting PCB:

Reflow soldering is a surface mount plate, and its process is relatively complex. It can be divided into two types: single side mount and double side mount.

A. Single side mounting: pre apply solder paste → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → inspection and electrical test.

B.Double sided mounting: pre apply solder paste on side a → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → pre apply solder paste on side B → patch (divided into manual mounting and machine automatic mounting) → reflow soldering → inspection and electrical test.
