SMT semi-auto production line in led light industrial pick and place machine for led tube mounting

Technical parameter

Dimension:2700*2300*1550mm

Total Weight:1700kg

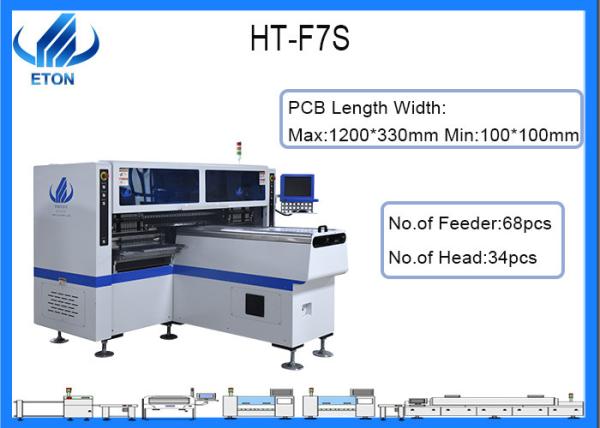

PCB Length Width:Max:1200*330mm Min:100*100mm

PCB Thickness:0.5-5mm

No.of Feeder:68pcs

No.of Head:34pcs

PCB Clamping:Adjustable pressure pneumatic

Mounting Mode:Group picking and separate placingseparate picking and separate placing

Software:R&D independently

Mounting Precision:±0.02mm

Mounting Height:<=5mm (Automatic Changing)

Mounting Speed:150000-180000 CPH

Components:LED,capacitors,resistors,rectifier etc.

Transmission Direction:Single direction (option)

The characteristic of lamp

Smt is that the length of lamp bead plate is needed to mount the lamp bead on the SMT SMT, and the resistor, capacitor and other surface mount components on the circuit board are needed to mount the lamp bead on the Smt Smt, the length of the lamp bead plate is needed to mount the lamp bead on the SMT, and the resistance, capacitance and other surface mount components on the circuit board are needed to mount the lamp bead on the SMT, there are higher requirements for length. The lengths are: 0.6m, 0.9m, 1.2m, 1.5m, 1.8m, 2.4m, so we generally recommend HT-E8S and HT-F7S.

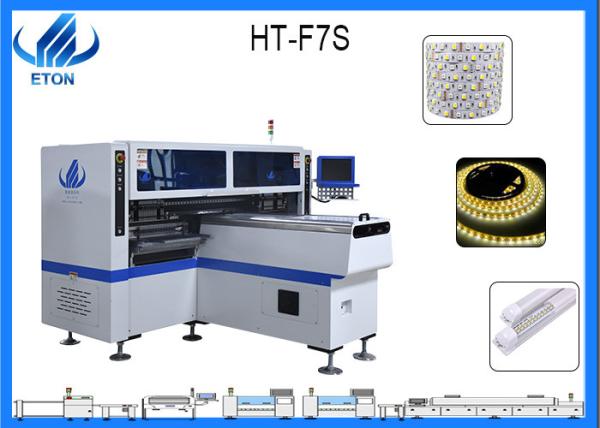

HT-F7S high-speed semi-automatic line

HT-F7S high-speed semi-automatic line of LED lamp tube optimal production capacity: 150,000-170,000 CPH actual production capacity: [3600 sec/(in and out of the Board 8 sec + full-page Patch Cycle Times + 1 sec)] * single board material quantity * splicing quantity = about 130,000 CPH

FAQ

Q: What's your delivery date?

A: The delivery date is about 30 days upon the down payment.

Q: Will you be participate the exhibition around the world?

A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.

Q: Why would I buy it from you and not another company?

A: 1.We can provide you with the whole production line.

2. Our software is R&D independently, so we can offer software upgrade for lifetime for free.

Q:Can you support whole SMT line?

A:yes, we can provide whole SMT line solution if you want, we are professional in this field.
