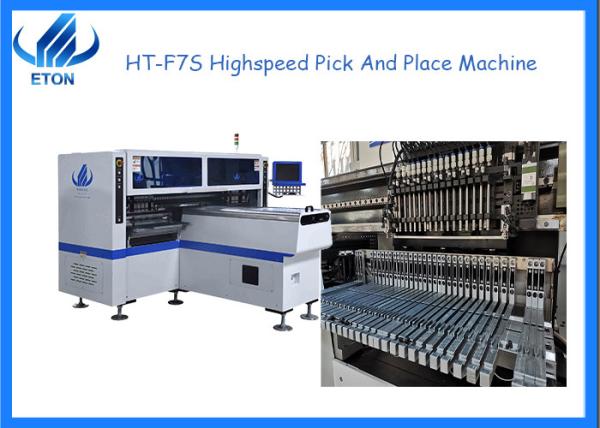

1.2m tube/flexible making machine group picking and group placing pick and place machine

Technical parameter

Features

• Suitable for max PCB size is 1200*330mm.
• PCB clamping adopt unique design, adjustable pressure pneumatic.

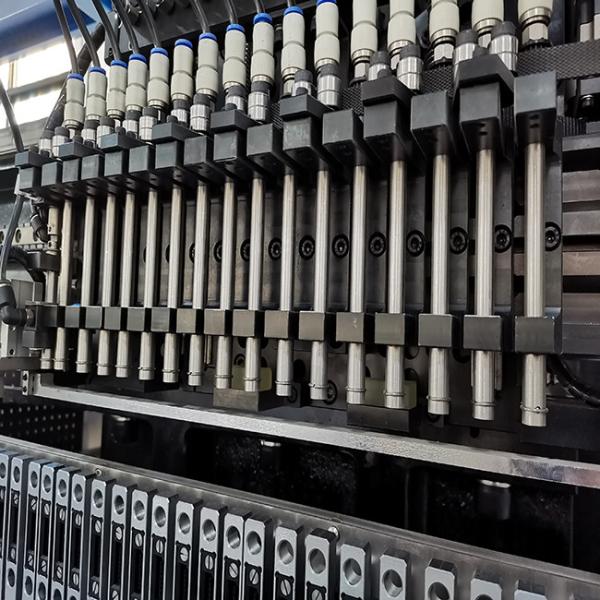

• F7S as the high speed machine with 170000 CPH, the mounting mode is group picking and group mounting, feeding missing components automatically.
• Camera functions: there are 5 sets of imported camera for vision alignment and mark correction.
• 1 set motion control card module, it is independent research and development by ETON

SMT line

Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.

Pick and place machine: Mount the electronic component at the specified position on the PCB.

Reflow oven: Melt the solder paste and fix it to the mounting element.

Single conveyor: Inspect the quality of assembly and welding to cushion the production line.

Packaging

Step 1. Film packaging

Prevent the machine from dust ,water,crash and shaking.

Step 2. Add foam+film packaging

Double safe protection,Prevent the machine from crash and shaking.

Step 3. Unique tin foil packaging

Add tin foil packing can prevent the film from scratch broken.

Step 4. customized Strong wood carton packing

The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.

Service

1. Before order:

We will support professional suggestion of SMT line

We will recommend the best module according to the products

We will supply best quotation with factory price

2. After order:

Machine will have good test and aging before shipping

We support machine free installation and training, special time we support online training, and video teaching.

We have Professional after-sales team, could solve problem as soon as possible

Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.

FAQ

Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.

Q: Can you provide a whole line solution?
A: Yes, we can .We can supply SMT line and LED production line.

Q: How can I get to know you better?

A: You can have a specific understanding of our company through our company's official website. After the epidemic, you can come to our company to know offline under safe conditions. Off-line can make you have a deeper impression on our company.
