AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure
AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure
Specifications
Brand Name :
ETON
Model Number :
ET-SME750
Certification :
CE,CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
FOB USD 100~500/sets
Payment Terms :
T/T
Supply Ability :
50 sets per mouth
Delivery Time :
30 work days after deposit
Packaging Details :
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
name :
Pneumatic Stencil Cleaning Machine
Stencil size :
750(L) × 750(W) × 40mm(H)
Warranty :
1 year
Weight :
200Kg
Condition :
New
Power supply :
AC220V 50Hz
Clean time :
2 ～3 Min （solder paste）
Printing Accuracy :
±0.025mm
Description

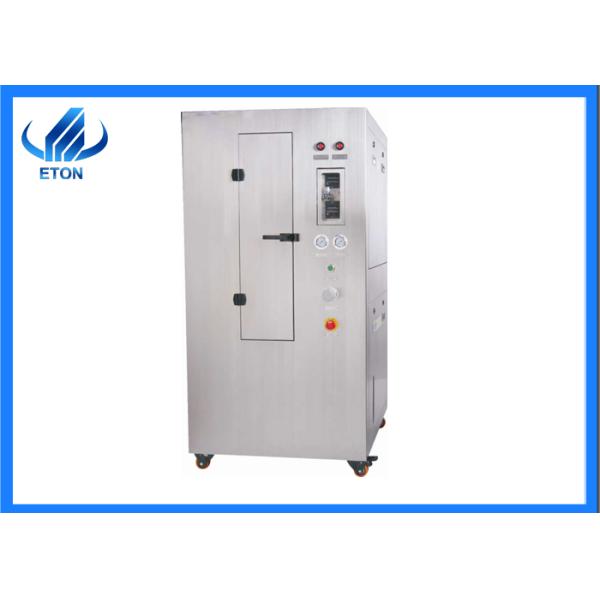

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine

Main Features:

1. Can clean solder paste stencil,red glue stencil,copper board, resin baord with diffirent cleaning liquid.
2. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
3. All the pipe,Angle seat valve and other parts are SUS304
4. Driven by compressed air, no electricity at all , safe.
5. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension.
6. One button easy operation, clean and dry complete automatically.
7. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety.
8. 3-class precise filtering system to make liquid clean by recycled use.
9. Modular design, easy to maintain and repair

Just one key operation, clean+dry process, good clean result, right
for all kinds of stencil

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure

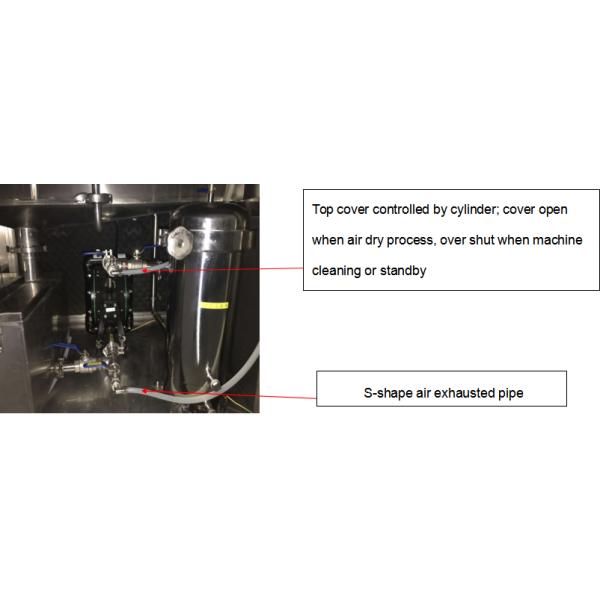

Auto add or discharge function; very easy to add in or discharge clean liquid

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure

Main Specitifion of Pneumatic Stencil Cleaning Machine:

Item Technical Spec
Stencil size 750(L) × 750(W) × 40mm(H) as max
Liquid tank 40 L as max
Clean method 360° rotation, double side liquid spray wash
Clean time 2 ～3 Min (solder paste)
Air blow dry time 3 ～5Min
Air supply 0.5 ～ 0.7 Mpa
Air flow 400 ～ 600 L/Min
Vent size Φ124×30mm(H) max air speed 3m/sec
Filter system(3 class) 1st class/2nd class:1mm /50um (impurity and lables)
3rd class:1um (solder balls)
Machine weight about 200Kg
Machine size 800(L)×950(W)×1630(H)mm

PCB Pneumatic Stencil Cleaning Machine

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure

Our Products

AC220V 50Hz PCB Pneumatic Stencil Cleaning Machine SUS 304 Structure

After-sale Service
What service you can enjoy if you purchase LED SMT pick and place machine from us:
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organisation and working system, guarantee you a fast delivery!
4) Supply you all the SMT proecssing related machines and devices with best prices!

Contact to me:

Ethel whatsapp/wechat:008613824337025

email:ethel@eton-mounter.com
