0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed
Specifications
Brand Name :
ETON
Model Number :
HT-F9
Certification :
CCC CE SIRA
Place of Origin :
China
MOQ :
1 SET
Supply Ability :
50 PCS/month
Packaging Details :
Vacuum wooden box
Name :
LED Mounting machine
Length :
2700mm
Width :
2300mm
Height :
1550mm
Total weight :
1700kg
Mounting speed :
200000~250000 CPH
System :
Windows 7
Software :
R&D Indenpendently
Description

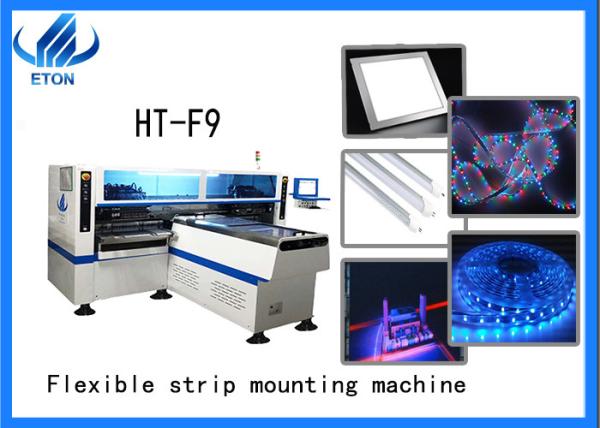

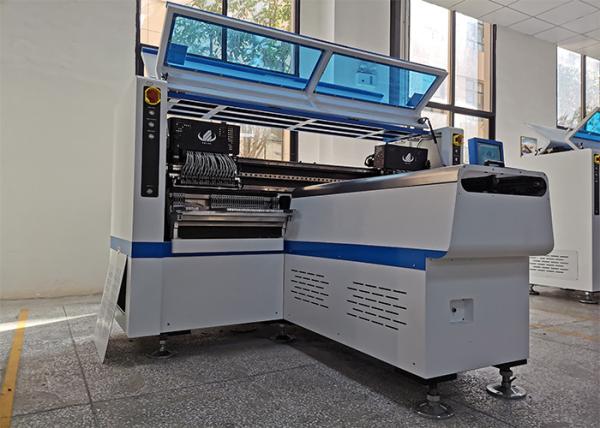

0603 200k CPH LED strip Mounting Machine with fast speed

Product description

1.Apply to the 0.6M, 0.9M,1.2M rigid PCB and 0.5M, 1M LED flexible strip.

2.Produce 4 kinds of materials at the same time with high capacity.

3.Available for any proportion of LED chip and resistor.

4.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
5.Calibration automatically, high precision, available for RGB.
6.Exclusive patent: group picking and group placing.


Mounting components: LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers.
O.S:
1) The operating system adopts window 7.
2) The software used in the machine is independently developed by our company and has obtained an exclusive patent certificate. Based on this, if you buy our machine, we will provide you with permanent free software upgrade.


Parameter

PCB sizeMax:1200*330mm min:100*100mm
PCB thickness0.5-5mm
PCB clampingAdjustable pressure pneumatic
Mounting modeGroup picking and group placing
Mounting speed20w-25wCPH(optimum)
Components space0.5mm
Mounting height≤5mm
X,Y Axis drive wayhigh-end magnetic linear motor+servo motor
Air supply0.4-0.6 mpa



Machine appliance

1.Rigid PCB: The length of PCB board that F9 can accommodate is 1200 * 330mm, you can make rigid boards, such as panel lamps and lamp tubes.

2. Flexible PCB: Of course, in addition to the hard board, one of the biggest features of this machine is that it can also make soft board, such as flexible strip, this kind of lamp is used for outdoor decoration.



0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed


0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed

Payment

We only support payment by L/C or T/T, if you choose to use T/T you need to pay 30% before produce, and the remaining 70% of the money should be paid before delivery, or choose to pay the full amount at one time.

Company show
ETON automatic equipment Co., Ltd was set up from 2011, is the leading manufacturer of global optoelectronic high speed Led lights PCB assembly mounting machine. The products are exported to more than 20 countries and regions.
0603 200k CPH LED lights PCB assembly Mounting Machine with fast speed

FAQ

Q1: How is the training?

A: After buying our machine, you will get a video of the machine to operate, of course, If conditions permit, we can send engineers to help you.

Q2: what kind of certificates does your product have?

A: Our machine have pass 2015 LED technology innovation award, etc.

Q3: :How many hours does the machine can operated per day?

A:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
