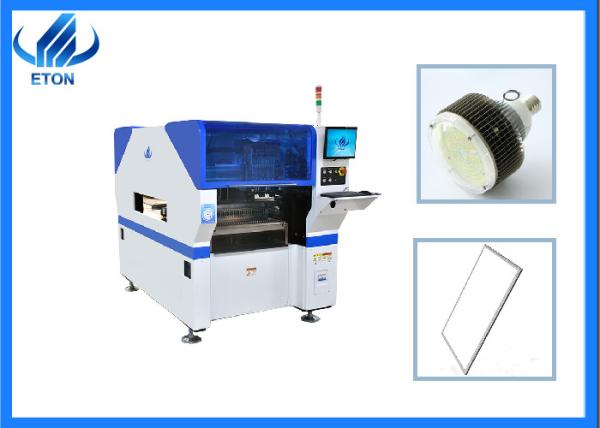

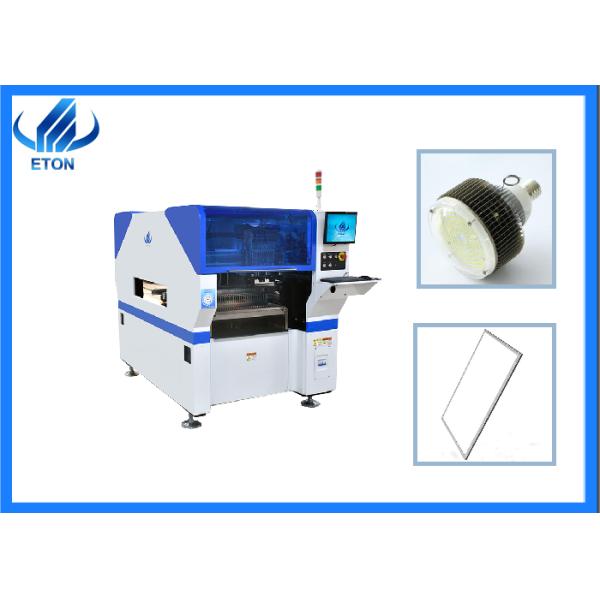

32 PCS Feeders Station capacity can reach 40000CPH Pick And Place Machine LED mounting Machine

1. FEATURES

RT-1 is a multi-function machine, which is used for mounting bulb, panel lamp, driving board, display screen, downlight, etc.

1.Magnetic linear motor multifunctional pick and place machine

2.Mounting components:LED chip,capacitors,resistors,IC,shaped components,etc.

3.Exclusive patented technology-We have 9 invention patents,112 practical patents,12 software copyright

-Vision alignment flight identification,mark correction

-Auto-optimization after coordinates generated,etc

2 .Technical Parameter :

RT-1

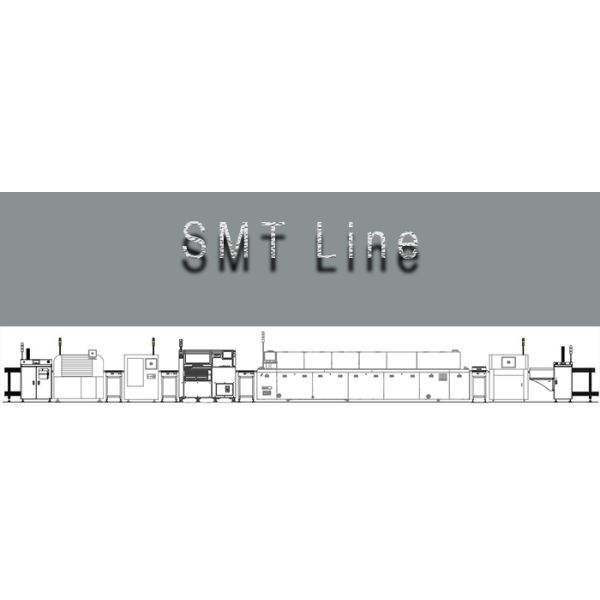

SMT Technological Process

1,Printer

2,Pick and place Machine/Mounting machine

3,Reflow oven

4,Conveyor

Step 1: scrape the solder paste with a scraper and leave it on the PCB pad through the steel mesh

Step 2: paste the lamp beads or other electronic components at the designated position of PCB

Step 3: melt the solder paste to make the electronic components better pasted on the PCB

Step 4: print and paste; Transmission; buffer

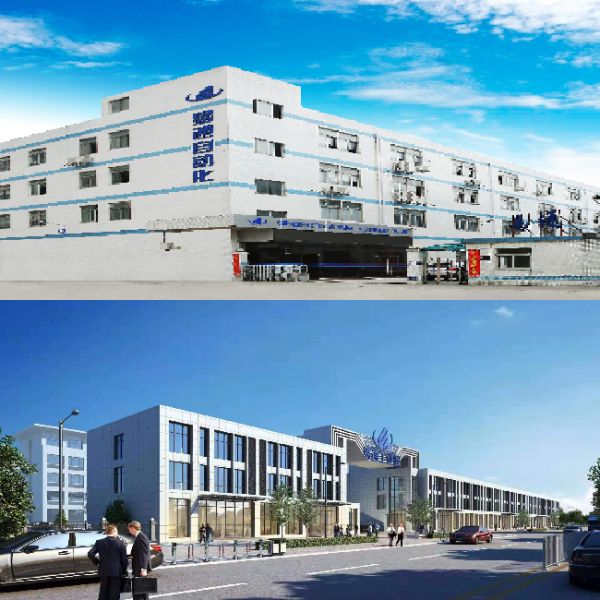

Company show

3. Company information

ETON machine is well-known in the market . In order to assure the quality of goods , we adopt strict processes in material purchasing and products producing .

ETON with more than 10 years experience in SMT machines field. Having more than 80% LED manufacturer are our partners in china.

FAQ

Q 1: What's the way of shipping ?

A : These are all heavy machines ; we suggest you use cargo ship . But spare parts for the machines , air transportation would be fine .

Q 2: What kind of service do you have?

A : we provide free install and training,during warranty,any parts need to be repaired and replaced will be free.

Q3:It’s hard to use the machine?

A:No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
