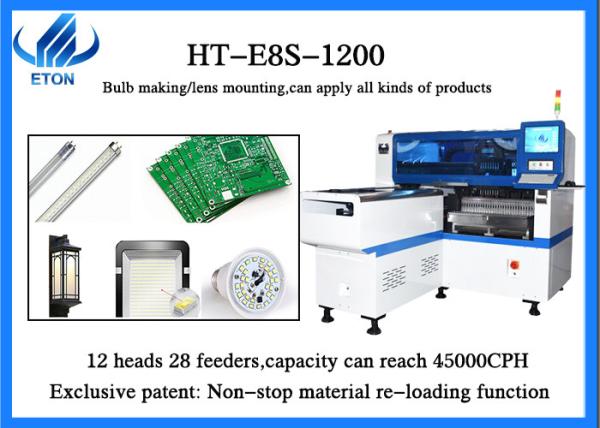

lens making bulb mounting 45000 CPH 12 heads 28 feeders pick and place machine

Product description

Optinal :8mm,12mm,16mm 24mm automatic feeder and different nozzles. feeders can send different forms of materials, such as braiding materials, bulk materials and so on, The nozzle can absorb components of different sizes, and can also customize the suction nozzle specially absorbing special-shaped components.

PCB design

1. The multifunctional machine is suitable for all kinds of products, and the max length of PCB can reach 1.2m. Even the 5m soft light belt can be pasted.

2. The size of the largest board is 1200 * 500mm, and the smallest is 100 * 100mm. However, if you need it, you can customize a machine with a length of 1500mm.

3. The fixed mode adopts adjustable pneumatic, which is very flexible and stable.

Feature

Appliance

This product can be applied to lens, bulb, drive, even lamp tube and lamp strip, with powerful function.Here are some application pictures:

Parameter

High-quality Mounter function

1.PCB positioning and recognition: Mark camera is a key camera. The clamping position, PCB can be known only by automatically scanning mark points.

2. Identify the camera before device mounting: the position of the PCB board is standard. Without this camera, whether the mounting head of your Mounter catches the device and deviates the device requires visual calibration.

Five-star service

The services we provide include the whole process of pre-sales, in-sales and after-sales. Among them, after-sales service is our feature. Our after-sales service is as follows:

1. First, it can assist in installation, train employees for free, or provide online learning videos

2. Second, the advantage of self-developed software is free upgrade for life, which can not only save the cost of software update, but also stay at the forefront of the industry.
