40000CPH 0.2mm single module multifunctional LED pick and place machine
40000CPH 0.2mm single module multifunctional LED pick and place machine
40000CPH 0.2mm single module multifunctional LED pick and place machine
40000CPH 0.2mm single module multifunctional LED pick and place machine
40000CPH 0.2mm single module multifunctional LED pick and place machine
40000CPH 0.2mm single module multifunctional LED pick and place machine
Specifications
Brand Name :
ETON
Model Number :
RT-1
Certification :
CCC,SIRA,CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, T/T
Supply Ability :
50pcs/month
Delivery Time :
5-8days
Packaging Details :
We use vacuum wooden box packaging
Length :
1200mm
width :
1930mm
height :
1500mm
total weight :
2000kg
mounting speed :
40000CPH
system :
windows7
Description

40000CPH 0.2mm single module multifunctional LED pick and place machine

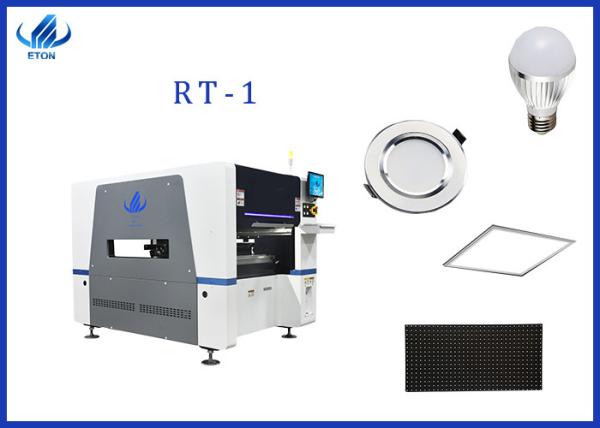

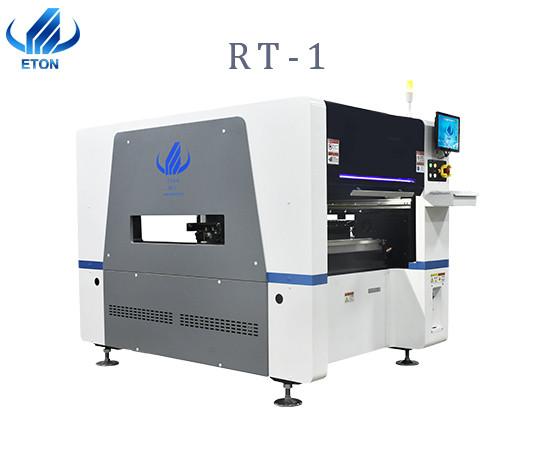

RT-1 introduction

Single mode group magnetic levitation multi-function Mounter single-mode group has a total of 32 suction nozzles. Feida adopts magnetic levitation linear motor mark camera, which has higher Mounter precision and longer service life. The multi-function mounter is suitable for mounting panel lamps, LED bulbs, DOB bulbs, downlights, display screens, drives, etc. Patch method: group take and paste, separate take and paste. The optimal production capacity per hour can reach 40000 CPH. The feeding mode is double motor electronic Feida feeder.

Technical parameter

Model RT-1
Dimension
Length 1200mm
Width 1930mm
Height 1500mm
Total Weight 2000kg
PCB
PCB Length Width Max:450*350mm Min:80*80mm
PCB Thickness 0.1-6mm
PCB Clamping Pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 2 PCS
Accurate image recognition
Vision alignment, MARK correction
Mounting Precision ±0.04mm
Mounting Height ≦15mm
Mounting Speed 40000 CPH
Components LED , capacitors, resistors, shaped components, etc.
Components Speed 0.2mm
No. of Feeders Station 32 PCS
No. of nozzles 10 PCS
Power AC 380V
Power Consumption 4kw
Operating Environment 23℃±3℃
Transmission Speed ＞1000mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Position Mode Optical
Gas consumption 0.4-0.6mpa (4-6kgf/cm2)600N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor
Feeding way Electric feeder with double motor

40000CPH 0.2mm single module multifunctional LED pick and place machine

COMAPNY PROFILE

Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.

40000CPH 0.2mm single module multifunctional LED pick and place machine

EXHIBITION

The exhibition is enough to reflect the strength of a company. ETON will participate every year. Domestic exhibitions mainly include Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition. Overseas exhibitions mainly include Thailand Exhibition, Turkey exhibition, Mumbai exhibition, Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc. We have large customers in India, such as rk, Surya, calcom, polycrb, etc.

40000CPH 0.2mm single module multifunctional LED pick and place machine

Patent

ETON has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.

40000CPH 0.2mm single module multifunctional LED pick and place machine

PACKING

We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.

40000CPH 0.2mm single module multifunctional LED pick and place machine

FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park

Q: How is the training?

A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
