Specifications
Brand Name :
ETON
Model Number :
HT-F7S
Certification :
CCC,SIRA,CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, T/T
Supply Ability :
50pcs/month
Delivery Time :
5-8days
Packaging Details :
We use vacuum wooden box packaging
Length :
2700mm
width :
2300mm
height :
1550mm
mounting speed :
180000CPH
Description

18k Dual arm tube flexible strip making machine producing with 2-4 types of materials

Technical parameter

Dimension
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separately placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 sets ( Digital camera)
Vision alignment, MARK correction
Repeat Mounting Precision ±0.02mm(Repeat precision)
Mounting Height ≦5mm
Mounting Speed 150000~180000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space 0.5mm
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor Transmission Max Length :1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Positioning way Optical
Air supply 0.4-0.6mpa (4-6kgf/cm²) 150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ Servo motor
Feeding System
No. of Feeders Station 68 PCS
No. of head 34 PCS
Feeding way Electric feeder with double motor

F7s introduction

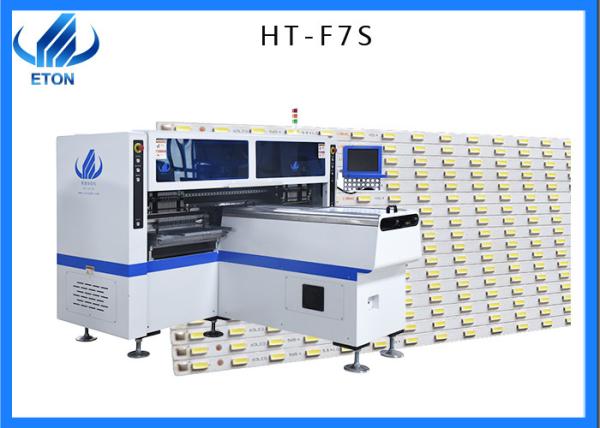

Ht-F7s is a high-speed dual arm special placement machine, which is the best of high-speed machines. The placement of 2-4 kinds of materials at the same time does not affect the high production capacity. It is suitable for 0.6, 0.9, 1.2 meter hard light plate and half meter one meter soft light belt. Special for both arms. The mounting head is divided into left and right groups, with 17 suction nozzles in each group, a total of 34. 68 Feida. The lamp tube and lamp belt described above are specially pasted. High speed: the optimal production capacity per hour is 180000 CPH. It has its own correction function and can be pasted with RGB. It has an exclusive patented technology: group taking and separately placing.

18k Dual arm tube flexible strip making machine producing with 2-4 types of materials

Company profile

Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.

18k Dual arm tube flexible strip making machine producing with 2-4 types of materials

SERVICE

Professional solutions: Provide professional SMT Full line solutions

Free Warranty: One-year warranty factory service.

Free Installation: On-site free installation to ensure smooth production.

Free Technical Training: Professional training of operating and maintenance.

Free Technical Support: 7 * 24 technical online support.

Free Software Upgrade: Offer free software upgrade whole lifetime

18k Dual arm tube flexible strip making machine producing with 2-4 types of materials

SMT LINE

18k Dual arm tube flexible strip making machine producing with 2-4 types of materials

FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park
