Specifications
Brand Name :
ETON
Model Number :
HT-F7S
Certification :
CCC/CE/SIRA
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Packaging Details :
wooden box with vacuum package
Dimension :
2700*2300*1550mm
Weight :
1700 KG
Mounting speed :
150000-180000 CPH
Feeders :
68pcs
No.of head :
34pcs
No.of camera :
5 pcs (Digital camera)
Pcb thickness :
0.5-5 mm
Components space :
0.5mm
Mounting mode :
GROUP TO TAKE AND GROUP TO MOUNT
Warranty :
1 Year,12 Months
Description

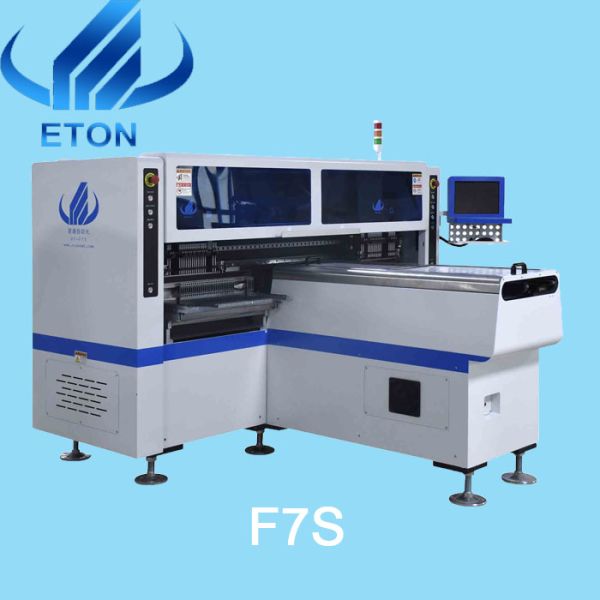

HT-F7S

F7s is a high-speed machine that can mount different products. As we all know, in the process of increasing speed, many manufacturers will choose to sacrifice some functions, such as manufacturing a mounter dedicated to one product. The different feature of the f7s machine produced by Eton is that as a high-speed machine, it can also mount a variety of products.

In addition, it also attracts LED manufacturing factories. The patch accuracy reaches the repetition precision of ±0.02mm, which is a great advantage for high-standard LED products. This machine will certainly improve your quality.

High speed pick and place machine SMT PCB printer manufacturer Automatic printing machine

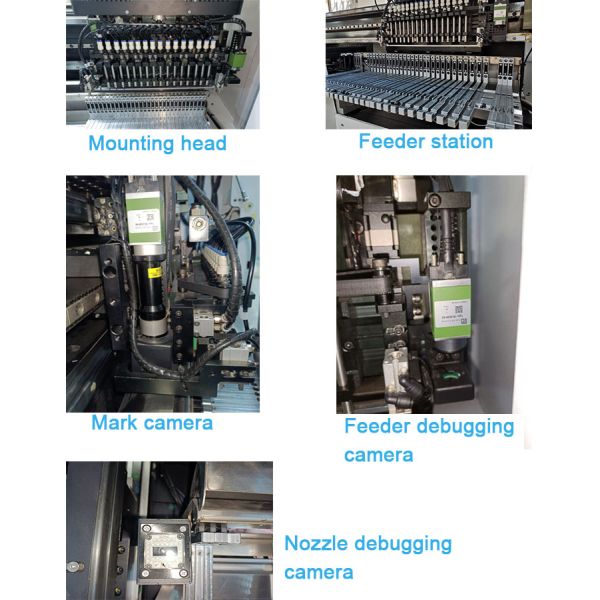

F7s has 34 mounting heads and 68 Feeder feeding stations There are 5 cameras on this machine, and three cameras will do scanning and positioning when mounting components. Among them, mark camera is used to scan PCB, judge the accuracy compared with the set mounting program, and make adjustment if necessary. Adjust the camera with the suction nozzle, scan the head of the patch and observe whether the mounting angle is correct. These cameras serve the high-precision manufacturing of PCBA.

High speed pick and place machine SMT PCB printer manufacturer Automatic printing machine

This machine can produce 4 kinds of different materials at the same time, maintain high production speed and paste them without waiting at one time.
Applicable to 0.6, 0.9m, 1.2m rigid lamp board and 0.5m, 1m soft strip light.

High speed pick and place machine SMT PCB printer manufacturer Automatic printing machine

Working with us will only make you feel at ease.

We has strong technical support from R & D department and after-sales service department.

High speed pick and place machine SMT PCB printer manufacturer Automatic printing machine

Our machines are available at exhibitions in many countries. No matter how far we come, we will participate in the exhibition.

High speed pick and place machine SMT PCB printer manufacturer Automatic printing machine

Just let us know what your doubts are.
