Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip
Specifications
Brand Name :
ETON
Model Number :
HT-F9
Certification :
CCC/CE/SIRA
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days after deposit
Packaging Details :
wooden box with vacuum package
Dimention(mm) :
2700*2300*1550
Total weight :
1700kg
PCB length width :
MAX 1200*330mm MIN100*100mm
PCB thickness :
0.5-5mm
Mounting precision :
±0.02mm
Mounting height :
≤5mm
No.of.feeders system :
68PCS
No.of .head :
68PCS
Components :
LED 3012/3020/3528/5050,resistor,capacitor,bridge rectifiers
Feeding way :
Feeding way
Description

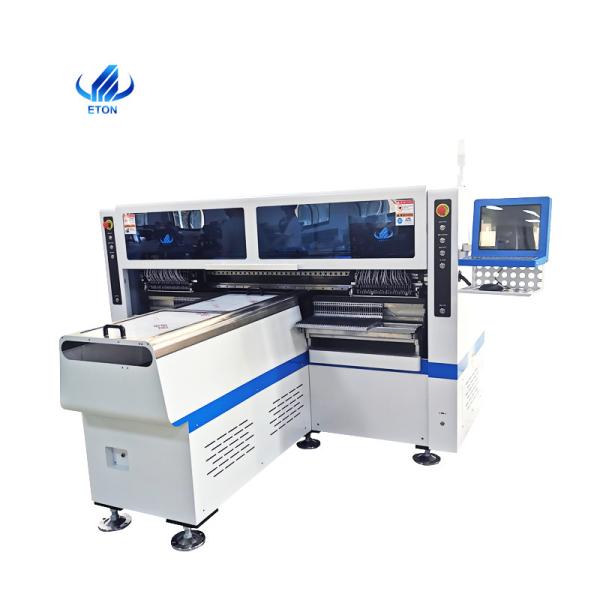

Flexible Strip 250000CPH Smd Led Pick And Place Machine Led 3014 3020 Chip

Feature:

  • Dual arm magnetic linear motor LED highspeed pick and place machone, producing 4 types material at the same time,capacity

  • reach 250000CPH.

  • Calibraton automatcally, high-precision, available for RGB

  • PCB clamping Adjustable pressure pneumatic

  • components: LED 3012/3020/3528/5050,resistor,capacitor,bridge rectifiers

High precision magnetic linear motor

Customized from Israel technology

Through linear position detection feedback control, improved the positioning accuracy, high efficiency, and improved the response performance.

Spline shaft

R&D by ETON

Uniform connection force, strong bearing capacity, good orientation and alignment, widely used in high-speed and precision machines.

Parameter

Model HT-F9
system windows 7
software R&D indepentently
display touch screen monitor
input device keyboard,mouse
No.of camera 5PCS(Digital camera) vision alignment, mark correction
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
Mounting speed 200000-250000CPH
No.of feeders station 68PCS
No.of head 68PCS
transmission direction single(left-right o right-left)
transmission mode online drive
positioning way optical
electrical control indepentently research and development by ETON.
motion control card module 1 set indepentently research and development by ETON.
XYZ Axis drive way High-end magnetic linear motor+servo-motor
feeding way electric feeder with double motor

Company and exihibition

In 2007, We established the Taipei R&D Center and started the special chip mounter technology and patent research and development.

In 2008, Hong Kong Hong ETON Group Co., Ltd. was established. ETON has made great achievements in the field of LED and has been working hard.

In 2011, Shenzhen ETON Automation Equipment Co., Ltd was founded. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.

Now, ETON has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.

1. Before order:

We will support professional suggestion of SMT line

We will recommend the best module according to the products

We will supply best quotation with factory price

2. After order:

Machine will have good test and aging before shipping

We support machine free installation and training, special time we support online training, and video teaching.

We have Professional after-sales team, could solve problem as soon as possible

Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
