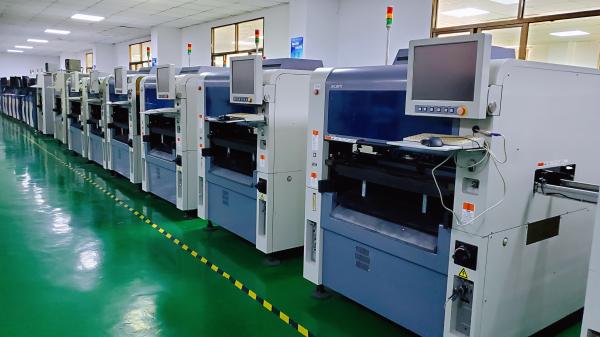

12000CPH SMT Mounting Machine

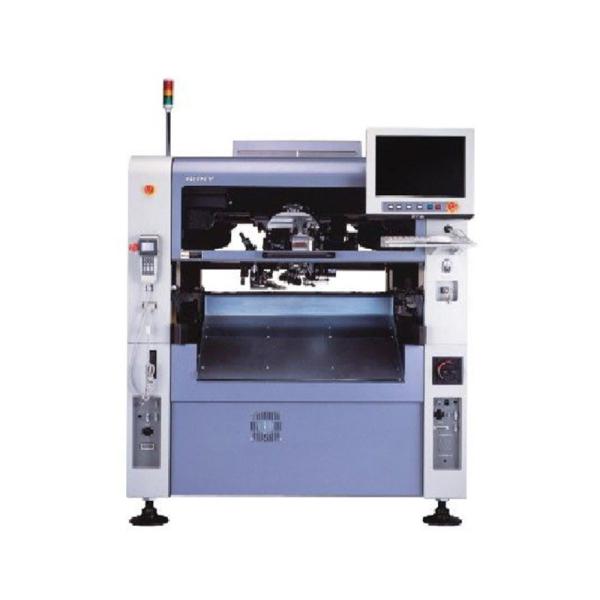

12000CPH SMT Mounting Machine

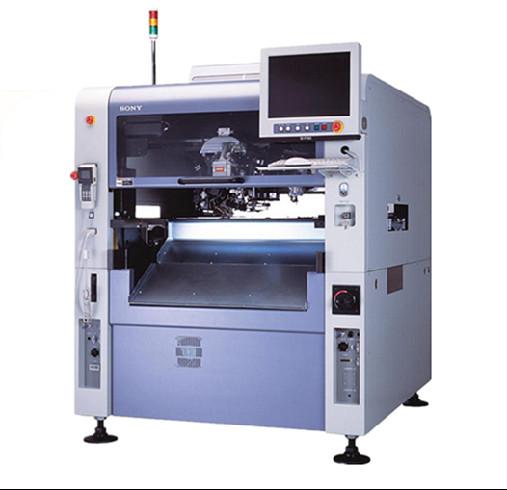

12000CPH SMT Mounting Machine

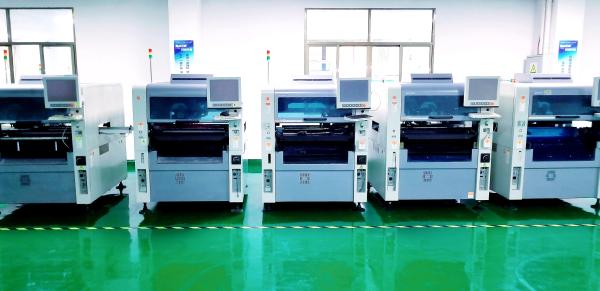

12000CPH SMT Mounting Machine
12000CPH SMT Mounting Machine
12000CPH SMT Mounting Machine
12000CPH SMT Mounting Machine
12000CPH SMT Mounting Machine
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
100pcs per month
Packaging Details :
Standard Export Packing
MOQ :
1 unit
Price :
Negotiable
Certification :
CE , ISO
Delivery Time :
15-20 days
Payment Terms :
L/C, T/T, Western Union, Paypal
Condition :
New
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 YEAR
Core Components :
Motor
After-sales Service Provided :
Video technical support, Free spare parts, Online support
Product name :
High speed automatic SMT machine
Mounting speed :
12000CPH
Component size :
0603-43mm QFP/BGA
PCB size :
50 * 50 - 460 * 360 mm
PCB thickness :
0.5mm to 2.6mm
Power voltage :
AC 3 phase 200V±10%, 50/60HZ
Power :
2.5-5.0KVA
Air pressure :
0.5-0.7Mpa(5.1~7.1kgf/cm2)
Machine size :
1200mm(W)*1700mm(D)*1545mm(H )
Machine weight :
1730KG
Description
12000CPH SMT Mounting Machine
Parameters
Product name
High speed automatic SMT machine
Mounting speed
12000CPH
Component size
0603-43mm QFP/BGA
Mounting accuracy
±50μm@μ+3σ/Chip；±30μm@μ+3σ/QFP
PCB size
50 * 50 - 460 * 360 mm
Visual system
Flight camera + fixed high pixel camera
Mounting head
1 head 6 nozzles
Component thickness
0402 (01005)-12mm IC (mobile camera) 6mm-25mm IC (fixed camera)
PCB thickness
0.5mm to 2.6mm
Number of feeders
48
Power voltage
AC 3 phase 200V±10%, 50/60HZ
Power
2.5-5.0KVA
Air pressure
0.5-0.7Mpa(5.1~7.1kgf/cm²)
Machine size
1200mm(W)*1700mm(D)*1545mm(H )
Machine weight
1730KG
Use environment
Ambient temperature 15℃～30℃
Ambient humidity 30%～70% (no condensation)
Working noise
35-65dB
Correction method
Machine vision system, multi-point MARK vision correction
Drive System
AC servo, AC motor
Data transmission
3.5-inch floppy disk/USB interface input
Operating system
Chinese, English, Japanese operation interface (WINDOWS system control platform)
Control mode
Fully automatic

Product Advantages

1. 4 pcs of cameras: 2pc of Mark, and 2 pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.

2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

3. Servo Motor and Drive, precise linear guide, Vacuum generator, high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

4, New mounting mode: the PCB board is fixed, and the head moves in the direction of XYZ axis. When attaching high components, the stability is improved.

The reference configuration

1. Control system: industrial computer + precision motion control card

2. software system :ETON independently developed operating system

3. Motion motor: magnetic levitation linear motor

4. Nozzle layout: independently develop various types of nozzles

5. Sliding device: precision screw + linear guide rail

6. Visual device: mark point recognition + component recognition + high-precision recognition

7. Feeder: adopt precise electric feeder

12000CPH SMT Mounting Machine
Product tags

smt mounting machine

,

smt mounter machine

,

smd mounting machine
