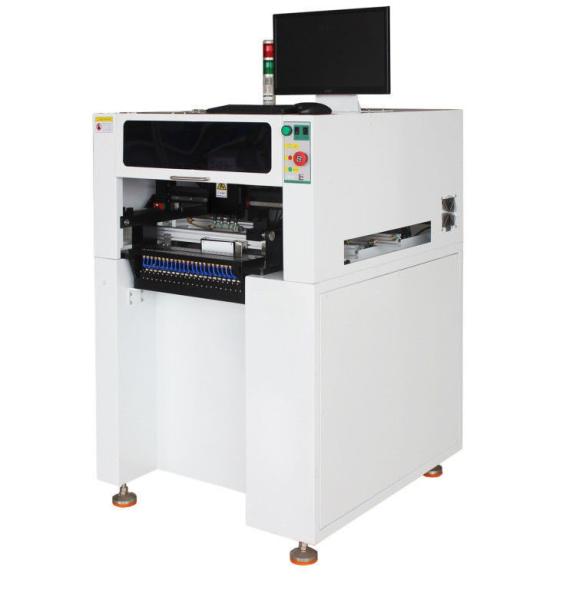

9500CPH SMT Mounting Machine

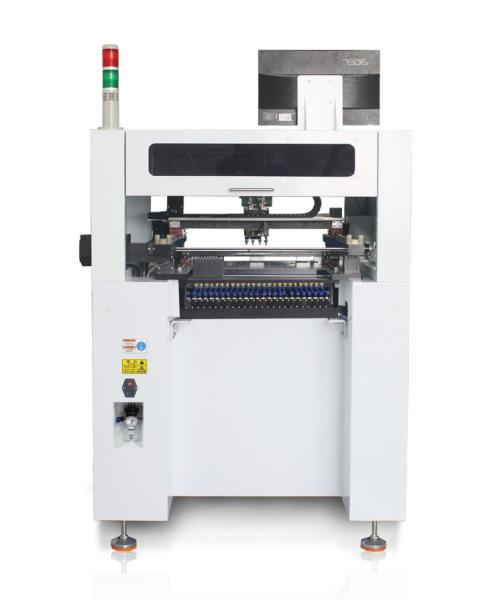

9500CPH SMT Mounting Machine

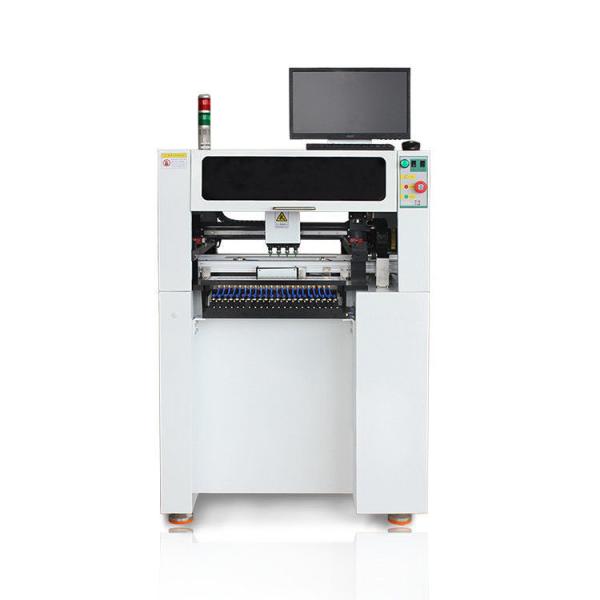

9500CPH SMT Mounting Machine
9500CPH SMT Mounting Machine
9500CPH SMT Mounting Machine
9500CPH SMT Mounting Machine
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
100pcs per month
MOQ :
1 unit
Price :
Negotiable
Certification :
CE , ISO
Packaging Details :
Standard Export Packing
Delivery Time :
15-20 days
Payment Terms :
L/C, T/T, Western Union, Paypal
Local Service Location :
None
Showroom Location :
None
After-sales Service Provided :
Video technical support, Free spare parts, Online support
Max applicable PCB :
350*435mm
Placement head quantity :
4
Max mounting capability :
9500CPH without vision / 7000CPH with vision
Applicable Components :
0402,0603,0805,SOP8,SOP16......QFN
Components supply :
Tape reel Tray, bulk package(IC)tubes
Motor control scheme :
Stepping Motor, Close-loop Control System
Feeders :
38 (YMAHA Feeder is available)
Tape width :
8mm,12mm,16mm,24mm
Warranty :
1 Year
Description

High Speed SMT Mounting Machine

Parameters
Applicable PCB20*40mm-350*435mm
XY-axis Moving Range375*715mm
Z-axis Moving Range16mm
Placement Head Quantity4
Mounting Capability9500pcs/h without vision
7000pcs/h with vision
Mounting Accuracy0.025mm
Applicable Components0402-5050,SOP8.LQFP100 etc.
Components SupplyTape reel, Bulk , IC tubes
Motor Control SchemeClosed-loop stepping servo system
Tape Width8mm, 12mm, 16mm, 24mm
Feeder38 (YAMAHA Feeder is available)
Machine DimensionL852*W962*H1230
Visual Camera6 CCD camera
Down-looking CameraAutomatic identify the mark point
Up-looking CameraAutomatic adjust the offset
Vacuum PumpExternal air pump
Power SupplyAC220V/AC110V
Net Weight215kg
Packing Size1.35CBM
Product Description
SMT pick and place machine is newly developed vertical machine. X-axis, Y-axis and Z-axis use high precision straight slide. They make the positioning more accurate. Multi-V ision System: one down-looking camera. Up vision system includes four small cameras and one big camera. It can save time that four nozzles will be examined over four cameras at the same time. So the mount speed of machine is faster than before. The machine has added new research and development automatic transmission system. The maximum mounting length is 600mm. It can satisfy more people's requirement.
Feature

HIGH SPEED SYNC CAMERAS
Simultancous correction when 4 placement heads picking up different components. Ensure accuracy while increasing work efficiency. Automatic detection when material is missing and automatic supplementary material.

HIGH DEFINITION CAMERA
Added a 500 million pixels high precision camera. Mounting chip

FOUR NOZZLES THROUGH VISION SIMULTANEOUS
Self-developed operating software. Four nozzles through the vision at the same time can save more time. placement more accurate

9500CPH SMT Mounting Machine
It can save time that four nozzles will be examined over four cameras at the same time.
Multi-vision makes placement faster.
Add a HD camera, improve IC placement accuracy.
Automatic Transfer
The QM41 has added new research and development automatic transmission system.
The maximum mounting length is 600mm.
It can satisfy more people's requirement.
