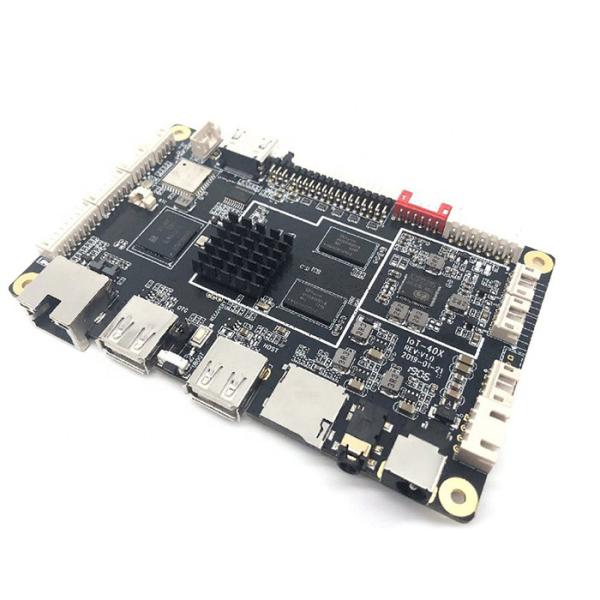

HASL ENIG FR4 Pcb Prototype Assembly Service Electronic PCBA

Introduce:

ZYX is a high-quality provider of electronics manufacturing services (EMS) locate in in Shenzhen,China. We serve customers worldwide along the whole industry chain including product design, material sourcing, PCBA production, cable assembly, box build assembly and comprehensive testing services. Our 4,000 sqm facilities include 6 surface-mount technology (SMT) production lines, 2 through hole technology (THT) lines , 2 function testing lines and 2 box build production lines

Model Number:

ZYX-7468JUHD

Place of Origin:

Shenzhen, China

Supplier Type:

POE

Brand Name:

BQZYX+

Copper Thickness:

1-10oz

Product Name:

PCBA Assembly Suppliers

MOQ:

1 piece

Buried&Blind Hole:

available

To visit the factory:

Any time for POE PCBA Assembly Suppliers

Surface Finishing:

Lead Free HASL /HASL/ENIG

ZYX is a professional OEM manufacturer for PCB design, PCB production, component souring and SMT assembly, we sincerely would like to be your reliable OEM supplier from China.
With more than 11 years experience in the PCB industry, our services includes:

- PCB/PCBA Contract Manufacturing
- Reverse Engineering Services
- PCB Design and Assembly
- Component Procurement / Material Management
- Product Design
- Fast PCB/PCBA Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
- AOI,X-Ray Testing, other Function Testing Service

Layers

Mass production: 2~58 layers / Pilot run: 64 layers

Max. Thickness

Mass production: 394mil (10mm) / Pilot run: 17.5mm

Material

FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc.

Min. Width/Spacing

Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)

Max. Copper Thickness

UL certificated: 6.0 OZ / Pilot run: 12OZ

Min. Hole Size

Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)

Max. Panel Size

1150mm × 560mm

Aspect Ratio

18:1

Surface Finish

HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger

Special Process

Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

PCBA technical Capacity

SMT

Position accuracy:20 um

Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP

Max. component height::25mm

Max. PCB size:680×500mm

Min. PCB size:no limited

PCB thickness:0.3 to 6mm

PCB weight:3KG

Wave-Solder

Max. PCB width:450mm

Min. PCB width: no limited

Component height:Top 120mm/Bot 15mm

Sweat-Solder

Metal type :part, whole, inlay, sidestep

Metal material:Copper , Aluminum

Surface Finish:plating Au, plating sliver , plating Sn

Air bladder rate:less than20%

Press-fit

Press range:0-50KN

Max. PCB size:800X600mm

Testing

ICT,Probe flying,burn-in,function test,temperature cycling

HASL ENIG FR4 Pcb Prototype Assembly Service Electronic PCBA

Q. What service can you supply ?

ZYX are OEM PCB and PCBA manufacturer since 2010 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.

Q. What file you need to prepare if you want to get an quotation from us?

For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.

For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.

Q. Do you have any MOQ Limited ?

We havent any limited about MOQ .Sample and mass production all can support.

Q. How to keep our product information and design file secret ?

We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.

Q. How long does it take for PCB and PCBA Quote ?

PCBs quotation within 2 hours can finished the PCBA depend on the components

quantity,if simple, within 6 hours can finished,once complex and more,the 12- 36 hours

can be finished.

*Please note that the following detail will speed up evaluation:

Material:

Board thickness:

Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:

Q. How about the delivery?

Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.

For mass production batch, our delivery is about 10 days.

But that depends on the real condition when we get your order.

If your order is urgently please contact us directly ,we will priority to deal it and do ourbest to give you satisfied delivery time.

Q. How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.

For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
