SMT Automatic Vacuum and Magazine PCB Loader - 2in1 PCB Loader, 50*80-530*460mm PCB | INFITEK Board Handling Equipment

INFITEK VL-XL-TN dual-purpose PCB Loader is a board handling equipment used in SMT Production Line. This 2in1 PCB loading machine can be used as Vaccum Type Loader for bare board PCB and Magazine Loader for double-sided PCB. This SMT conveyor system is specially designed for SMT Production Lines that produce double-sided mounted PCB. INFITEK VL-XL-TN SMT Automatic Vacuum and Magazine PCB Loader is the model designed for XL-type PCBs and has an adjustable width that can load PCBs with sizes from 50*80mm to 530*460mm max size.

SMT AUTOMATIC VACUUM AND MAGAZINE PCB LOADER
Model: VL-XL-TN
Applicable PCB sizes: 50*80-530*460 (mm)
PCB Magazine size: 535*530*563 (mm)
Machine Dimensions: 2450*1250*1250 (mm)
Machine Weight: Approx. 320 kg.

Features:

• Uses Special aluminum alloy parts, more clearly understands the state of MAGAZINE operation
• The stable integral casting lifting platform structure design has improved the stability of the equipment
• Multifunctional electrical circuit and program design, stable performance, ensure smooth of the feeding plate PCB
• The upper part of the bin has 4 kinds of PITCH selection, which can set the step distance of the feeding plate PCB
• The LED tricolor working indicator is controlled by a 7-inch color human-machine interface
• Equipped with a universal positioning mechanism is adopted for the suction nozzle positioning, and the absorption bits can be adjusted according to the characteristics of the PCB board
• The board part of the PCB on the suction plate has the function of lifting and un-lifting.
• The material box is transmitted by the plastic strip of the flat plate
• Adjustable push plate speed control
• Three-point positioning, and upper and lower pneumatic clamping, ensure the location of the box is accurate
• The push plate protection system ensures that the PCB board will not be damaged and the process loss will be reduced
• The standard SMEMA communication interface can be connected with other automation devices

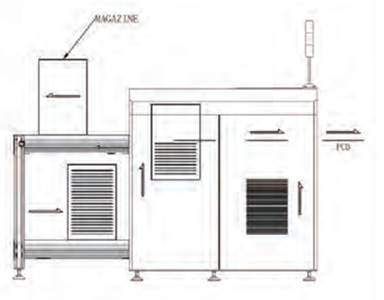

Operation Diagram
