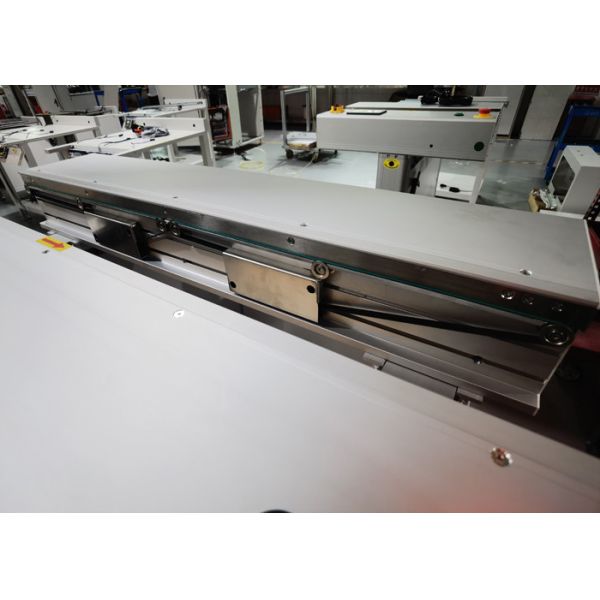

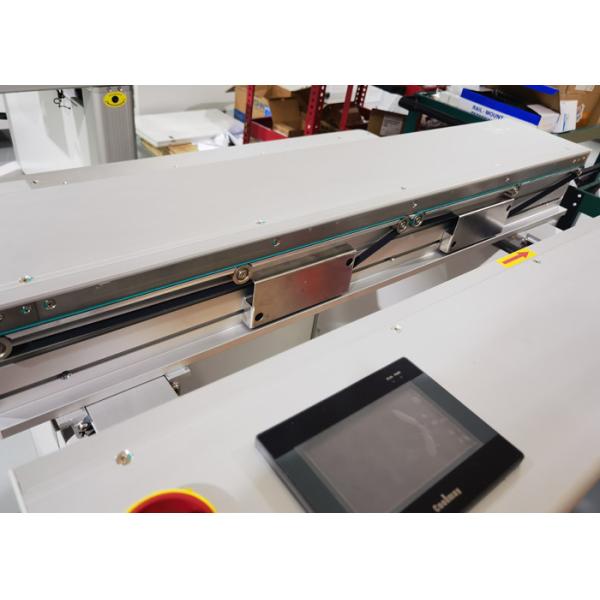

0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
Specifications
Brand Name :
INFITEK
Model Number :
0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover and LED Light - 650mm max PCB width
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Wooden Crate
Product Name :
PCB Inspection Conveyor
Application :
Dual Rail Inspection Conveyor for SMT Production Line
Description :
0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover and LED Light - 650mm max PCB width
Rail Width :
Adjustable width
Available length :
0.8M, 1M or customized
Warranty :
1 Year Warranty
Reliability :
For industrial use - long life span
Packaging :
Wooden Box packaging
Description

0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover

The INFITEK 0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover and LED Light - 650mm max PCB width is an SMT PCB conveyor with special features and a more stable frame design to be more durable and provide a longer life span. This high-end board handling equipment has an ergonomic design that will provide comfort to operators and reduce the strain on their arms while spending long hours on manual visual inspection of PCBs using this inspection conveyor. The length of this conveyor can also be customized depending on the requirements of the SMT production line.

HIGH-END INSPECTION CONVEYOR WITH DUST COVER and LED Light
Dual Track - Automatic Rail Width Adjustment
Applicable PCB Size: 650mm max width
Conveyor Length: 0.8M, 1M - or specified

FEATURES:

  • Dual Lane
  • With Dust Cover
  • With LED Light
  • Modular Design
  • Its Solid design improves the machine's stability
  • With Inspection mode and Automatic mode (bypass mode) function settings
  • With an accurate sensor stop position
  • The ergonomic design makes the operator's arms less prone to fatigue.
  • Machine length can be customized according to customer requirements
  • The number of stops can be customized according to customer requirements
  • With variable speed control
  • Precise and durable laser-cut stainless steel rail with smooth and safe edge
  • SMEMA interface compatible
  • Automatic Rail Width Adjustment

TECHNICAL PARAMETERS
Description This device is equivalent to an SMD machine or operator testing station of PCB assembly
Belt Type Antistatic oblate belt
Conveying Speed 0.5-20M/min or customer specified
Power supply AC1P110V/220V
Power Max 100VA
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left

OPTIONAL CONFIGURATION
Motorized width adjustment
1 PLC control
2 Touch Screen
3 Width Adjustment by motor
4 Automatic Width Adjustment

0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
