One-stop Service ProviderFounded in 2010, JingChuang PCBA is a professional manufacturer of PCBs, which are widely applicable to consumer electronics, telecommunication products, medical equipment and prototypes. Our products are well-distributed to different countries in Europe, the Americas and Asia.We offer one-stop service from schematic design, board layout, component selection, firmware design, and mechanical design to PCBA and chip cloning. We can also help you procure components as well as provide PCB FPC and mold making, plastic injection, assembly, packaging and shipment services. In addition, our raw material and key components are sourced from famous suppliers such as Sharp, TI, PANASONIC, BOURNS, TE, NXP, Toshiba, ST, Samsung, Infineon, JRC and NEC.
As one of the leading PCB manufacturer in China is dedicated to providing High-tech PCB products which including FR4PCBs, Aluminum PCBs, HDI PCBs,Multilayer PCBs (up to 28layers), Gold Finger PCBs and Rogers PCBs with annual production capacity of over 15 million square feet .JingChuang PCB provides one-stop service to meet technology challenges at the lowest cost. we will try its best to satisfy customers' requirements, and assist customers to shorten the time to market so as to improve their advantage. We persist in creating the maximal value for our customers by focusing on the demands and challenges of our customers and providing competitive PCB products and services.
reverse engineering, PCB rapid proofing, component procurement and PCB assembly. high-tech enterprises
Why choose us:
1. fast delivery: the fastest delivery 24 hours
2. good quality: AOI test machine, X-RAY test machine, Panasonic, Yamaha automatic placement machine, material quality
3. good price: You will be expected to save 5% to 25% of the cost.
Contact us today.
Shenzhen Jingchuang Electronics Co., Ltd.
Customer is God, customer satisfaction is our only standard!
Shenzhen Jingchuang Electronics Co., LTD. Is a company specializing in the production and processing of SMT patch, DIP plug-in, testing, finished product assembly and other products.
With strong production capacity, advanced production equipment, professional OEM. Network products,

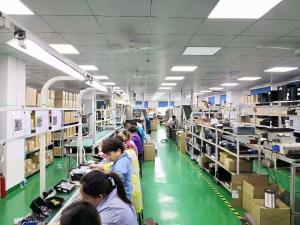

Hd player, router, security and other electronic products. Dust-free workshop,

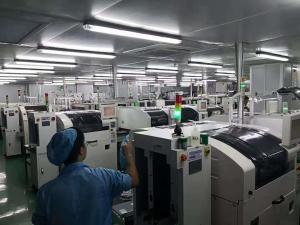

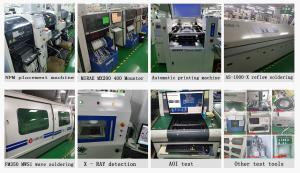

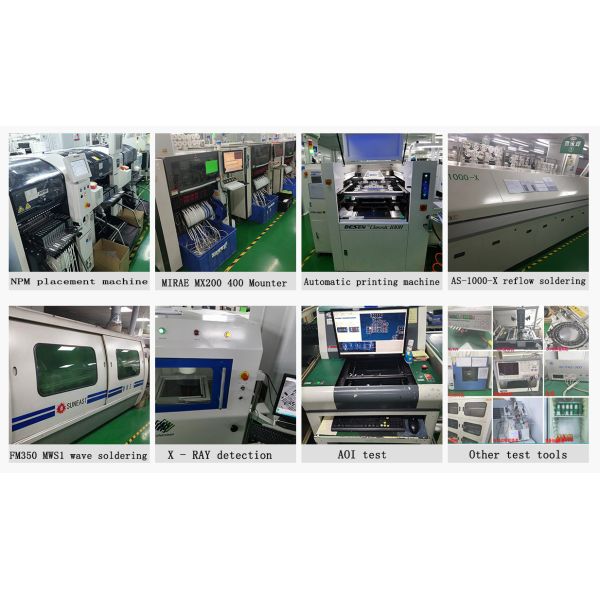

Equipped with 6 high-speed SMT, automatic printing machine (DSP1008), panasonic /MIRAE
MX200/MIRAE MX400 high-speed production line, (YS24/ YG12F... ), reflow welding (ns-1000)
AOI testing equipment (jta-320-m), X-ray testing equipment (juta AX7200), 2 pieces
DIP production line and H east wave soldering, multiple tests, assembly lines, maintenance lines, all with full assembly.
The Jingchuang company has established a perfect management system and production flow.
How to make sure quality and safety during production.
Quality is a measurement system cover the entire organization from sales through shipping.
A professional PCB& PCBA design, product, sale manufacturer, established in 2010. Specially dedicate to Security, Industrial Automation, Medical, Household Appliance PCBA and Electrics products finished assembly. Currently with 150 workforce and covering 2, 000 square meters area, our products exported worldwide including North American, & South American, European Countries and Asia, etc. R&D engineers, 8SMT production lines 4 DIP production lines, 3 final assembly production lines and many advanced testing instruments. Our current annual production capacity is more than 4, 000, 000 PCS PCBA (circuit control board) and 100, 000 sets electronic end products assembly. Relying on high quality, high efficiency, and prompt way, we can provide various, multi-layer, customized PCBA, Final assembly and tailor-made service to our customers. Small and medium orders. Also be welcome.
Main Products:
1. PCBA OEM PCBA Application: *Telecommunication PCBA: Exchange Board, Router, GPRS *Automation PCBA: Automatic Refueling Machine, Automatic Cutter, Inverter, Electricity Monitoring System, Frequency Conversion Controller, Electric Welding Machine, Elevator, Escalator *RFID technology: Active RFID, Passive RFID *Power Supply and New Energy: Industrial Power Supply, LED Driving Power, Solar Power System, Wind Power System *Medical Equipment PCBA: Color Doppler Ultrasound Instrument, Medical Monitor *Financial PCBA: Currency count machine, POS machine, Teller machine. *Household Appliance PCBA: Coffee Maker, Blender, Soybean Milk Machine, Cleaner, Hair Straightener, Electric Toothbrush. 2. PCBA ODM: Embedded Industrial Control Product, Power Supply, Household Appliance Control Board .JingChuang has sophisticated R&D management system, Quality Assurance System, Supply Chain Management System, and Environmental Protection Management System. Based on our solid smartpower, considerate service, excellent core technology, added value service to customers, we have been approved and trusted by our home and abroad well -known customers. Company to pursue' Keep Searching for Development Innovation, Insist on keeping Improving,. As a developing enterprise, we are willing to do everything possible for customers, work together to create a new win-win situation continuously with you.
Shenzhen Jingchuang Electronics Co., Ltd. was wstablished in 2013, but our one-stop service started from 2010.
PCB Process capability | ||
Item | Capability | Details |
Number of layers | 1-6 copper layers PCB prototypes | The number of layers refers to the number of layers in the design document, which can produce 1-6 layers of through-hole plate |
Material | Cardboard, semi-glass, full glass (FR-4), aluminum substrate | |
Max. Dimension | 650x520mm/640x480mm | The maximum size of single and double sided is 650x520mm, and the maximum size of four or six layers is 640x480mm. |
Dimension Tolerance (Outline) |
±0.15mm | CNC:±0.15mm , V-cut :±0.15mm |
Thickness | 0.4--2.0mm | 0.4/0.6/0.8/1.0/1.2/1.6/2.0 mm |
Thickness Tolerance ( Thickness≥1.0mm) |
± 10% | e.g. For the 1.6mm board thickness, the finished board thickness ranges from 1.44mm(T-1.6×10%) to 1.76mm(T+1.6×10%) |
Thickness Tolerance ( Thickness<1.0mm) |
±0.1mm | e.g. For the 0.8mm board thickness, the finished board thickness ranges from 0.7mm(T-0.1) to 0.9mm(T+0.1). |
Minimum line width | 4mil(0.1mm) | Currently available for 4mil line width, line width is recommended to be greater than 4mil |
Minimum clearance | 4mil(0.1mm) | At present, 4mil line spacing can be connected, and the gap is recommended to be larger than 4mil |
Finished Outer Layer Copper | 35um/70um(1 OZ/2 OZ) | Finished outer layer copper weight is 1 OZ=35um,2 OZ=70um |
Finished Inner Layer Copper | 0.5 oz (17um) | Finished inner layer copper weight is 0.5 oz only |
Min. Via hole size | 0.25mm | For Single&Double Layer PCB, the minimum via hole size is 0.3mm; For Multi Layer PCB, the minimum via hole size is 0.2mm. |
Min. Via diameter | 0.45mm | For Single&Double Layer PCB, the minimum Via diameter is 0.6mm; For Multi Layer PCB, the minimum via diameter is 0.45mm. |
Via To Trace | ≥5mil | Minimum distance between via(plated holes) and trace is 5mil. |
Drill Hole Size | 0.2--6.3mm | Min. drill size is 0.2mm, Max. drill size is 6.3mm. |
Hole Size Tolerance | ±0.08mm | e.g. For the 0.6mm hole, the finished hole size between 0.52mm to 0.68mm is acceptable. |
Annular Ring | ≥3mil | Annular ring surrounded by traces should be equal to or larger than 3mil |
Min. Character Width | ≥6mil | Characters width less than 6mil(0.153mm) will be unidentifiable |
Min. Character Height | ≥32mil | Characters height less than 32mil will be unidentifiable. |
Trace to Outline | ≥0.2mm | Ship as individual board(Routing): Trace to Outline ≥0.2mm; Ship as panel with V-scoring: Trace to V-cut line ≥0.4mm |
Panelization without space | 0mm | |
Panelization with space | ≥2mm | Make sure the space between boards should be ≥2mm, otherwise it will be hard to process for routing. |
Min. Edge Rails | 3mm | |
Min. Half Hole Diameter | 0.6mm | Half hole is a special technology, so half hole diameter should be greater than 0.6mm. |
SMT processing capability | ||
Item | PCBA processing capacity |
|
Lead Time | elivery time is 24 hours (fastest 6 hours expedited), small batch delivery is 5 days, all the above time after all components and PCB materials are ready Start the calculation immediately. | |
Production capacity | SMT patch 4 million points / day, plug-in after welding 500,000 points / day, 50-100 styles / day | |
Parts Source | Consigned/kitted | We hope that you will supply all the parts for the PCBA service. In this case, please send us all the components with the BOM file and a detailed packing list, which should include the item number in the kit, the part number and quantity of the customer or manufacturer. With a mature and effective component procurement management system. A team of professional procurement engineers and experienced purchasing staff is responsible for the procurement and management of parts for our customers. Customers choose our complete set of alternative materials, which greatly reduces procurement costs and management costs, eliminating the hassle of multi-party communication and improving work efficiency. |
Turn-key | With our wide and powerful network of parts sourcing, we offer Turn-key PCBA service. We do not mark up on the parts cost. Considering the big price gap between different suppliers, we only source from reliable suppliers who may have no price advantages. We will always ask for your approval before making any decisions. | |
Partial Turn-key/Combo | This is our regular practice which you offer the main devices and components, while we source the rest for you. Just like the Turn-key service, we will ask for your approval on every details of the parts concerning price, quality and availability. | |
Assembly Options | We offer Surface Mount (SMT), Thru-Hole (THT) and hybrid of both. We also offer single or double-sided placement. | |
Types of Solder | We offer both leaded and lead-free (RoHS Compliant) assembly services for our customers. Please choose one to best fit your PCB and the parts on the PCB. | |
Stencils | We use laser cut stainless steel stencils to ensure high reliability for fine pitch and BGA components. Nano coating is available upon request. | |
Minimum Order | Our minimum is as low as 5 pieces. We do not want you to pay for what you do not need indeed to save you money. | |
Component Size | Passive Component: we can accept components as small as 01005, 0201,0402. BGA: We have the ability to handle BGA of 0.25mm pitch with X-ray testing. Fine Pitch Parts: we can assemble 0.25mm fine pitch parts. |
|
Component Package | We accept parts in Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk. | |
Maximum part placement accuracy(100FP) | Full placement accuracy of ±50 microns, repeatability up to ±30 microns | |
PCB board type |
PCB hard Board(FR-4,Metal substrate),PCB Soft board(FPC),soft and hard board PCB | |
Board Dimension | Min Board Size: 50mm x 100mm (Boards smaller than this size need to be panelized) Max Board Size: 250mm x 500mm |
|
file format | List of materials/components (BOM),PCB(Gerber Files and most PCB design format files), coordinate files) | |
Test |
Before delivery, we will apply a variety of test methods to PCBA in or already mounted: | |
• IQC:Material inspection | ||
• IPQC:Production sampling check | ||
• QC:Routine quality inspection | ||
• AOI:Check solder paste, solder effect of patch elements, missing parts or components polarity | ||
• X-Ray:Check high-precision hidden PAD components such as BGA and QFN; | ||
• Functional testing: test functions and performance according to customer test procedures and procedures to ensure compliance. |
||
• aging testing: test functions and performance according to customer test procedures and procedures to ensure compliance. |
||
Repair & Rework | Our BGA repair service can safely remove defective BGA, such as dislocation, offset, virtual welding, and so on, and put it perfectly on the PCB again. |
