Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420
Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420
Specifications
Brand Name :
Charmhigh
Model Number :
CHMT530P + Solder Printer + BRT-420 Reflow Oven
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
$7800 including shipping DHL
Payment Terms :
T/T , Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
2-5 working days after received your payment
Packaging Details :
Packed in 5cm EPE foam firstly, and then reinforced with wooden case for outer packing
SMT PNP Machine :
CHMT530P Auto feeder + Vision System
Size of PCB :
350mm(L)×250mm(W)
Size of solder Printer :
320*440mm (middle size)
Reflow Oven :
BRT-420
Soldering Area :
960mm* 300mm
POWER :
2500W
Description

Solder Printer + CHMT530P Pnp Machine + BRT-420 Reflow Oven Best Combination SMT Production Line


Small SMT Production line / Best combination:

1. Solder printer:

Technical Parameters
Type: Manual
G.W: 13kg
Maximum print Area: 320*440mm
Packing size: L 71cm*W 52cm*H 14cm


2.CHMT530P

Parameters

Model

CHMT530P

XYZ Axis travel

510mm(X)×450mm(Y)×15mm(Z)

PCB max size

350mm(L)×250mm(W)

Support components

0402-5050, SOP, QFN etc.

Mounting speed
  • Without vision:6500cph
  • With Vision:4500cph

Precision

±0.025mm

Placement head

2pcs

Feeding system
  • Support max 30pcs 8mm Pneumatic feeder (4mm, 8mm, 12mm, 16mm, 24mm for option)
  • 11pcs general IC stack
  • Support IC tray

Vision detection

Double camera(up & down)

Motor control
  • XY Axis stepper motor with encoder
  • Flexible S deceleration
  • Z Axis reset detection

Components leakage detection

Vacuum and visual detection

Main board

High-reliability industry motherboard

Touch Screen

7 inches industry screen

Operation system

Embedded Linux system

External air source

0.5MPa

Power supply

AC220V 50Hz / AC110V 60Hz

Demension

890mm(L)×680mm(W)×490mm(H)

Power

250W

Net weight

90Kg

3.Reflow Oven T960w:

BRTRO-420 Reflow Oven

Soldering max area: 300*300CM

Soldering way: Hot air + IR mix

Rated power: 2500W

Process Period: 5- 10 min

Max temperature: 300 degree

Temperature control accuracy ±1 degree (constant temperature)

Welding type: Lead & Lead free

Power Supply: AC110V-AC220V/50-60HZ

1. Stencil printer Middle size 320*440mm

Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420

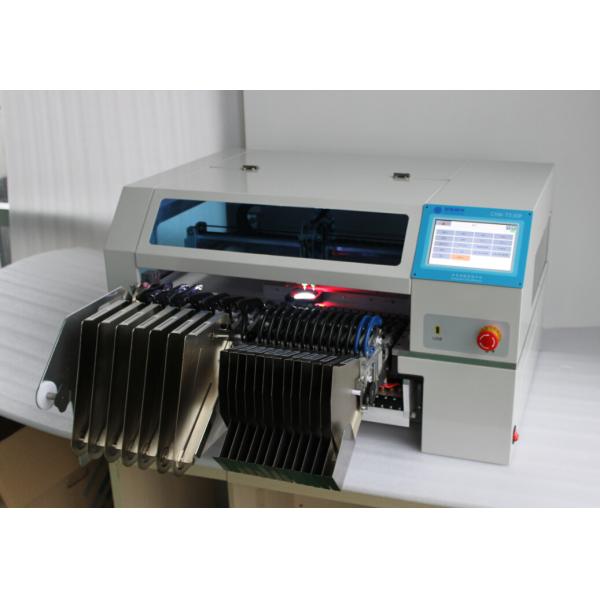

2. CHMT530P Pick and place machine with AUTO feeders with Vision System

Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420
Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420

3. LED Reflow oven 420:

Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420

Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420


Small SMT production line:

Solder printer ------ Pick and Place machine ----- Reflow oven

Desktop SMT Production Line Solder Paste Screen Printer CHMT530P Pick And Place Machine SMT Reflow Oven BRT-420


Q1: What is the lead time of your products? (How long do you need to prepare my goods?)

A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).

Q2: How will you deliver my goods to me?

A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their

goods rapidly. For bigger quantity, ship by air or by sea.

Q3: How long do I need to wait before my goods arrive?

A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.

Q4: What is your product quality?

A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.


Warranty:


The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale

service.

If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.


Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com


Standard package service:


The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.

Transportation service:

For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.
