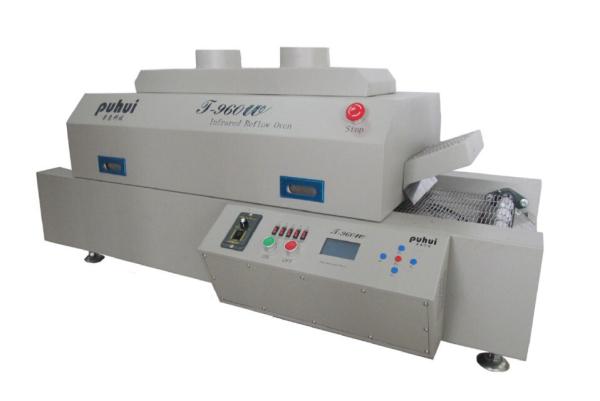

T960W Reflow Oven For LED 960mm* 300MM Net Transmission＋Chain Transmission

Technical parameters

Feature:

1. This machine uses infrared technology to strengthen the hot air heating system, equipped with special design wind wheel wind speed stability, temperature uniformity for the bulk of new LED light source, BGA components uninterrupted welding;

2. The machine is equipped with crawler, five-zone heating system, independent of each temperature zone using forced circulation, independent PID control, upper and lower independent heating, the temperature of the furnace chamber accurate, uniform, large heat capacity, fast heating from room temperature to operating temperature less than or equal 20 min;

3. smart curve heating, large capacity curve selection, with eight technology curve can meet the requirements of all types of welding processes;

4. programmable control technology, the preset memory function curve, according to your preset curve automate the entire welding process;

5. measured using a thermocouple temperature, and add a compensation circuit, the temperature measurement is more accurate, so that the curve is more perfect;

6. PID intelligent temperature control technology, allowing more accurate temperature control, no import high current solid state relay contact output can effectively avoid rapid warming or uninterrupted. warming caused by the chip or circuit board is damaged, the entire welding process more scientific and safety;

7. imported inverter motor drive system, PID closed loop speed control, with 1: 150 imported turbine reducer, smooth operation, adjustable speed range 0-1500mm / min;

8. Using independent wheel structure and the care level, special stainless steel mesh belt B word, durable wear-resistant smooth operation, precise speed of up to plus or minus 10mm / min;

9. separate cooling zones, to ensure that the low temperature of the PCB when the board of the required;

10. friendly man-machine interface, perfect LCD without a PC connected with the whole heating process at a glance;

11. fortitude appearance, compact size, from start to finish embodies technology-based. Mesa-type placement mode, so you have more space; the simple instructions, so you'll see.

Technical parameters:

Product Type: T-960W

Number of heating zones: under 3 / down 2

Heating zone length: 960mm

Heating: Infrared strengthen the system of hot air

Number of cooling zones: 1

PCB maximum width: 300MM

Transport direction: Left → right

Transmission: network transmission + chain drive

Conveyor belt speed: 0-1500mm / min

Power 3-phase 5-wire 380V 50 / 60Hz

Power Peak power: 4.5KW

Warm-up time: 15 minutes or so

Temperature control range: room temperature ~ 350 Degrees Celsius

Temperature control: PID closed-loop control

Temperature control accuracy: ± 1 Degrees Celsius

PCB board temperature distribution deviation: ± 2 Degrees Celsius

Dimensions (L * W * H): 1450 x 630 x 470 mm

Weight: 150 KG

Main components:

1 x Reflow Oven Machine

1 x Cable

1 x User Manual

Note:

1. The machine must be grounded.

2. The person in charge of the operation.

3. The drive chain 7 days plus a high temperature lubricant.

4. Do not place near flammable dangerous goods present reflow machine.

5. Do not reach into the normal working reflow machine.

6. Do not put foreign objects in the online transmission.

Routine maintenance:

1. Keep the cabinet clean.

2. Check the fan sleeve is loose.

3. Check the fan and electric motor.

4. Are there abnormal sound, check the fan drive is flexible.

5. Check out whether there are foreign objects blocking the vent.

6. Check the transmission belt is too loose.

7. Check whether there is abnormal sound electrical power box.

8. Check the transmission parts are loose and abnormal sound.

9. To check the machine before starting the operating voltage is within the safe range or is stable, in order to ensure safe operation of the components may be normal. Also check the power and check the various parameters are the same when the last shutdown. Do not allow the shutdown to stop the conveyor belt in the machine is still at a high temperature to avoid conveyor belt at high temperatures accelerate aging, it is best to let the machine temperature is lowered again to stop the conveyor belt.

10. Lubricate the drive wheel, with a high temperature lubricant smear every two months.

11. Operation of the machine the motor speed at a high temperature long term, be less than twice a week Add thereto WHEEL temperature oil to maintain its smooth functioning.

12. Clean the sticky and motor in a variety of residue on the blades, so as not to cause a short circuit aging or burn fan.

13. When the machine uses a three-phase five-wire system, the machine must be grounded.

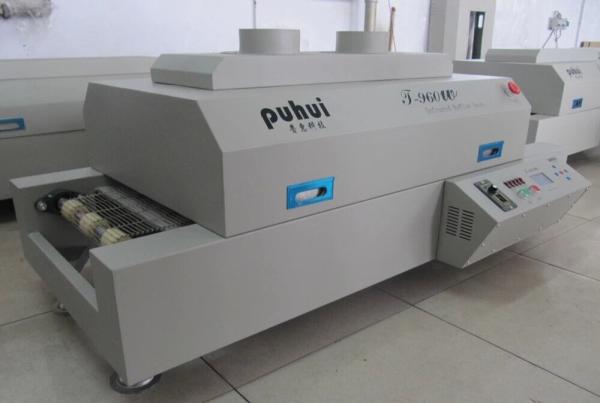

Pictures as follows:
