Description

Hottest desktop SMT production line:

1. CHMT48VB SMT Pick and Place Machine
2. 3040 Stencil Printer
3. Reflow Oven CHMRO-420

1. Buy it by PayPal link, click to pay: Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420

2. Buy it at Aliexpress: https://www.aliexpress.com/item/32747568339.html?spm=2114.12010612.8148356.33.3a341881eBi6fO

Instructions:
1. Stencil Printer 3040 description:

Work table size 300*400mm
Print size 250*400mm
Max net frame size 370*470mm
Printer way manual
Thickness of the substrates 0-80mm
The workbench adjust volume 10mm, Horizontal Angle adjustment
Printing platform height 220mm
repeated accuracy +-0.01mm
locate mode Benchmark or hole shape
Dimension 540*370*350 mm
Packing size 630*450*480mm
Weight NW.25Kg GW.35Kg


2. CHMT48VB All-in-one Machine:

Model CHM-T48VB
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 510*460mm
Z axis moving range 15mm (Highest component 5mm)
Placement heads 2pcs, comes with 4 nozzles
Feeders

Tape reel feeder 58pcs (left 29pcs + right 29pcs)
(8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,)
Front bulk IC feeder=14pcs, customs IC tray 20pcs

Tube feeder supported(optional)
Vision system Two cameras (up & down cameras) Vision max range 22*22mm
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, it prevent nozzles breaking
Pull pin self-return Yes, it prevent needle breaking
Leakage of material detection method Vacuum detection, vision detection
Touch screen 7 inch industry touch screen
Main board Independent research industry main board
System Embedded Linux system
Mounting speed 4000cph (vision off); 3000cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN ..etc.
Machine dimension L 960mm* W 705mm* H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC No need external PC (it has build-in computer)
Voltage 220VAC (110VAC), 50Hz/60Hz
Net weight 68kg
Gross weight 85kg / 107*80*52cm


3. CHMRO-420 Reflow oven parameter:

Soldering max area: 300*300CM
Soldering way: Hot air + IR mix
Rated power: 2500W
Process Period: 5- 10 min
Max temperature: 300 degree
Temperature control accuracy ±1 degree (constant temperature)
Welding type: Lead & Lead free
Power Supply: AC220V


Pictures as follows:
1. Stencil printer size 250*400mm
Free send scraper and stirring knife
Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420

2. CHMT48VB 58pcs feeders Vision pick and place machine:

Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420


Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420

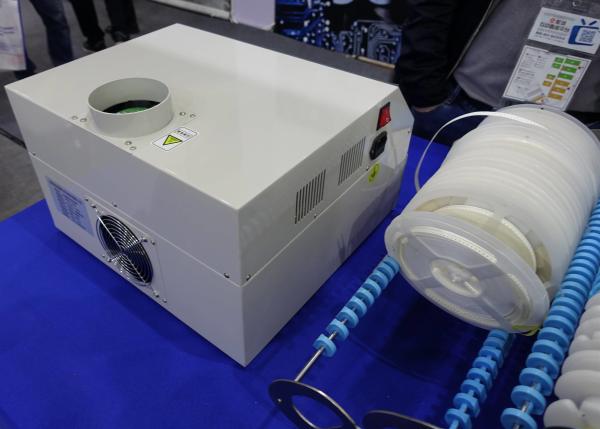

3. Reflow oven CHMRO-420
Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420

PCB making samples:

Hottest SMT line Stencil Printer 3040 / CHMT48VB SMT Pnp Machine / Reflow Oven 420

Note:

The pick and place machine is complete set with all accessories included in the package, QC passed.

It is all-in-one machine, ready to use!

You can use it when you receive it. Good after-sale tech support, please purchase it with confidence.

Enjoy with your pick and place machine!

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi Mob/ WhatsApp: 0086 135 106 75756

Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com

Welcome to follow us in YouTube: www.youtube.com/kimiLiuCharmhigh

If you want to see more information and videos, please contact us by E-mail.

We will response you at the first time.
