Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
Specifications
Machine Type :
HIGH PRESSURE CLEANER
Applicable Industries :
electronic factory
Condition :
New
Place of Origin :
Guangdong, China
Brand Name :
SME 5600 PCBA cleaner machine
Use :
PCBA Cleaning Machine
Cleaning Process :
PCBA Cleaning Machine
Cleaning Type :
Industrial Ultrasonic Cleaner
Industry Used :
Electronic Industry
Material :
PCBA Cleaning Machine
Power :
Pneumatic Stencil Cleaner
Dimension(L*W*H) :
L1300 x W1200 x H850(mm)
Warranty :
1 Year
Max. Pressure :
PCBA cleaner
Marketing Type :
PCBA cleaner
Machinery Test Report :
PCBA cleaner
Video outgoing-inspection :
PCBA cleaner
Warranty of core components :
PCBA cleaner
Core Components :
PCBA cleaner
Key Selling Points :
PCBA cleaner
Weight (KG) :
600 kg
Product name :
SME 5600 PCBA cleaner machine
skype :
sensenhenhao
whatsapp/wechat :
+8613424013606
PCB Size: :
30x30mm~500x500mm
Wash Time: 5~10min :
Rinse Time: 1~2min/time
Cleaning Basket Size: :
L610*W560*H100mm* 2Layers
Dry Time: 20~25min :
Rinse Times: 3~5times(1~99 Avaliable)
Liquid Heat Temp: Room Temp~60℃ :
Resistivity Range: 0~18MΩ
Dry Temp: Room Temp~99℃ :
Air Supply: 0.5Mpa, 200~400L/min
Material: SUS304 Stainless Steel :
Power Supply: AC380V. 3P,50/60Hz, 28KW
Packaging Details :
SME 5600 PCBA cleaner machine package+plywood case
Port :
shenzhen
Supply Ability :
100 Set/Sets per Month SME 5600 PCBA cleaner machine
Price :
$30,000.00 - $60,000.00/sets
Description

Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine

skype:sensenhenhao,whastapp/wechat:+8613424013606

SME 5600 PCBA cleaner machine Description:

Aqueous PCBA flux residual and solder balls ion contamination automatic cleaning machine is an off-line, compact, energy-saving and environmental protection machine.


With its excellent cleaning performance. SME-5600 PCBA cleaing n machine can effectively clean flux on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.


Each PCBA cleaning industries,like: military,aviation, aerospace, medical, new energy, automotive electronics industries...

SME 5600 PCBA cleaner machine advantages:


1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.

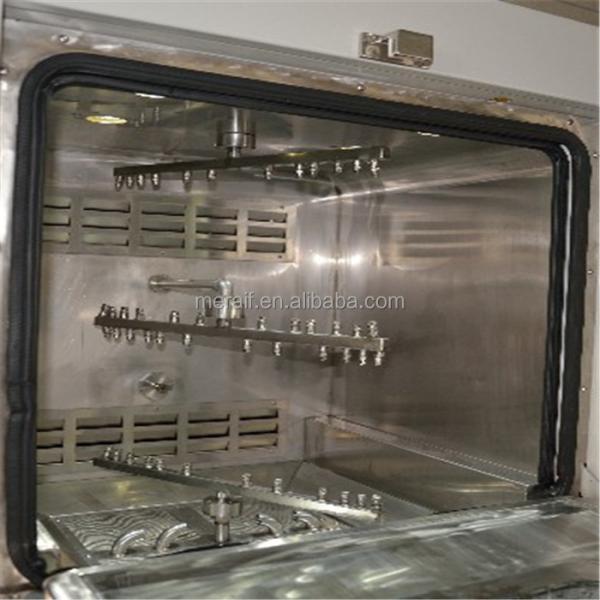

2. 3 spray rods, 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.


3. All processes are visible through a large observation window.


4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.


5. Standard liquid and DI water fliter.

6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.


7. Compressed air blow off pipes and pumps, save liquid.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure, solide, acid and alkali corrision-proof


SME 5600 PCBA cleaner machine spec:

ITEM SPEC
Cleaning basket size L610xW560xH100mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Cleaning time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 0.2um
DI water filter 0.2um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1300xW1200x1850(mm)
Machine weight 600KG

Customer Question & Answer

Q1: What is the cycle time of SME-5600 batch cleaning machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.

Q2: What liuqid can be used in SME-5600 to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid wash, DI water rinse.

Q3: Have many pcbas can SME-5600 clean in one cycle?

A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.

Ask something for more details


PCBA comparison pictures before and after cleaning:

Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machineAqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine

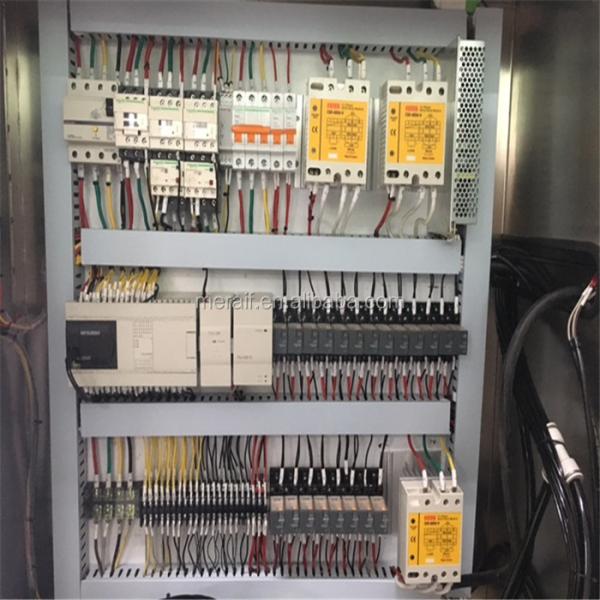

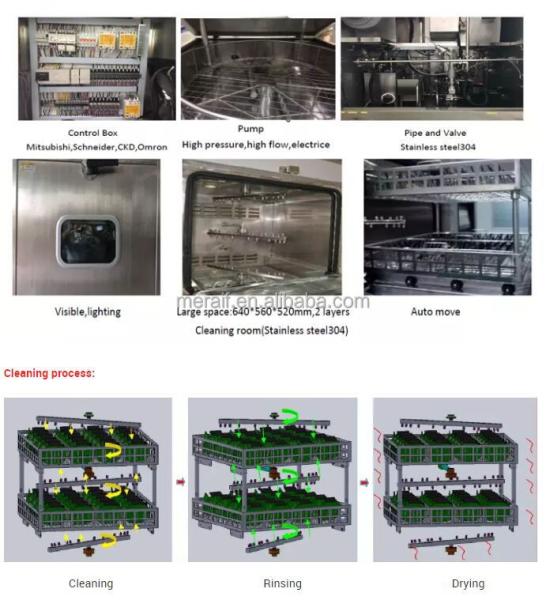

SME 5600 PCBA cleaner machine picture show:

Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machineAqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine

Aqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machineAqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machineAqueous PCBA Flux Residual And Solder Balls Ion Contamination automatic Cleaning Machine SME 5600 PCBA cleaner machine
