wafer suction pen PEEK suction cup VAC Vacuum Tweezer Kit from Virtual PORTA-WAND VPWE7300AR-MW

whatsapp:+8613424013606, Wechat :JoyLY0322 skype:sensenhenhao

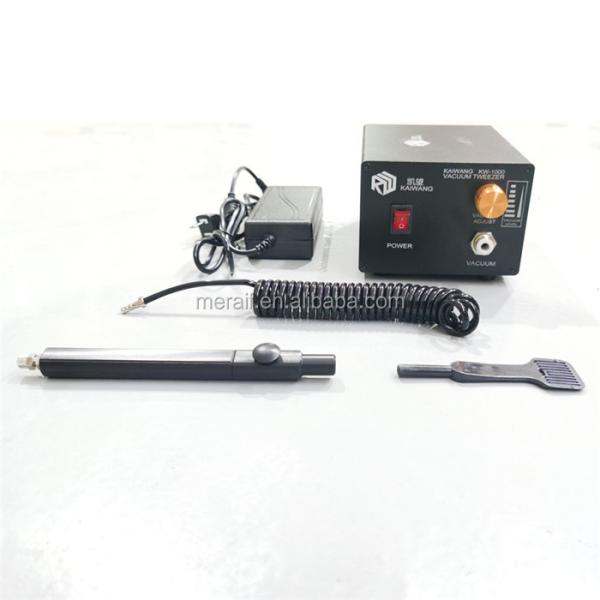

VAC Vacuum Tweezer Kit details:

Packing specification: 220*205*105mm

Weight: 1.2KG

Vacuum pump: 1. Aluminum alloy shell 2. Diaphragm pump 3. Adsorption force: 90Kpa

Penholder: POM material

Suction tip: Teflon PEEK material (anti-static 10" 6th power ohm)

Trachea: PU spring tube extending 2 meters, specification 4*2.5mm with 6mm adapter

High temperature resistance: about 260 degrees

Scope of application: suction and release in the semiconductor silicon wafer industry

FOR VirtualL PORTA-WAND Series Battery Wafer Vacuum Pen Model
1. SERIES 3 PORTA-WAND / ELITE PORTA-WAND 3 ELITE battery vacuum suction pen, removable and interchangeable batteries
Equipped with a detachable 9.6V NiMH rechargeable battery VPWE-150 and a wafer suction tip, the operation indicator lights up only when firmly sucked, ensuring safe operation
VPWE7300AR-VWT5R-AR: SERIES 3 PORTA-WAND ELITE w 300mm Wafer Tip VWT-5R, 12” (300mm)
VPWE7300AR-VWT5R-220-AR: 300mm round tip VWT-5R, suitable for 12-inch wafer, 220 VOLT
VPWE7300AR-MW4/ VPWE7300AR-MW4-220: PEEK suction cup VMWT-A, handles up to 4” (100mm) wafers
VPWE7300AR-MW6/ VPWE7300AR-MW6-220: VMWT-B tip, suitable for 6” (150mm) wafers, 110V/ 220V power supply version
VPWE7300AR-MW8/ VPWE7300AR-MW8-220 8-inch wafer suction pen: VMWT-C PEEK tip, suitable for 8” (200mm) wafers
VPWE7300AR-TW4/ VPWE7300AR-TW4-220: High temperature Teflon tip VWT-100075PF, 4” (100mm) wafers
VPWE7300AR-TW6/ VPWE7300AR-TW6-220: High temperature Teflon coated tip VWT-170110PF, 6” (150mm) wafers
VPWE7300AR-TW8/ VPWE7300AR-TW8-220: High temperature Teflon coated tip VWT-250125PF, 8” (200mm) wafers
Replacement spare parts: VPWE7300AR-XWT, VPWE7300AR-XWT-220, with pen holder and charger without suction tip; VPWE7300AR-X only suction pen holder
SERIES 3 PORTA-WAND Documentationdownload/201804/Virtual_VPWE7300AR-VPW6000AR.pdf
VPWE7300AR Specification Download/201804/Virtual_Porta-Wand_Elite VPWE7300AR.pdf
2. PORTA-WAND 3 battery vacuum suction pen, non-removable battery
Built-in fixed rechargeable 9.6V NiMH battery and a wafer suction tip, the operation indicator lights only when the wafer is firmly sucked, ensuring safe operation
VPW6300AR-VWT5R-AR: 300mm round suction pen tip VWT-5R, suitable for 12-inch wafer, 110V
VPW6300AR-VWT5R-220-AR 12-inch wafer vacuum suction pen: (VPW6300AR-12) 300mm round suction pen tip VWT-5R is suitable for 12-inch wafer 220V
VPW6300AR-MW4/ VPW6300AR-MW4-220: PEEK tip VMWT-A, handles up to 4” (100mm) wafers
VPW6300AR-MW6/ VPW6300AR-MW6-220: VMWT-B PEEK tip for 6” (150mm) wafers, 110V/ 220V power supply version
VPW6300AR-MW8/ VPW6300AR-MW8-220: VMWT-C tip, suitable for 8” (200mm) 8” wafer
VPW6300AR-TW4/ VPW6300AR-TW4-220: High temperature Teflon coated tip VWT-100075PF, handles up to 4” (100mm) wafers
VPW6300AR-TW6/ VPW6300AR-TW6-220: High temperature Teflon coated tip VWT-170110PF, handles up to 6” (150mm) wafers
VPW6300AR-TW8/ VPW6300AR-TW8-220: High temperature Teflon coated tip VWT-250125PF, handles 8” (200mm) wafers
Replacement spare parts: VPW6300AR-XWT, VPW6300AR-XWT-220, including pen holder and charger but not suction pen; VPW6300AR-X only suction pen holder
Vitual Wafer Wand Specification Documentdownload/201710/Virtual_PORTA-WAND_VPW6000_VPWE7000

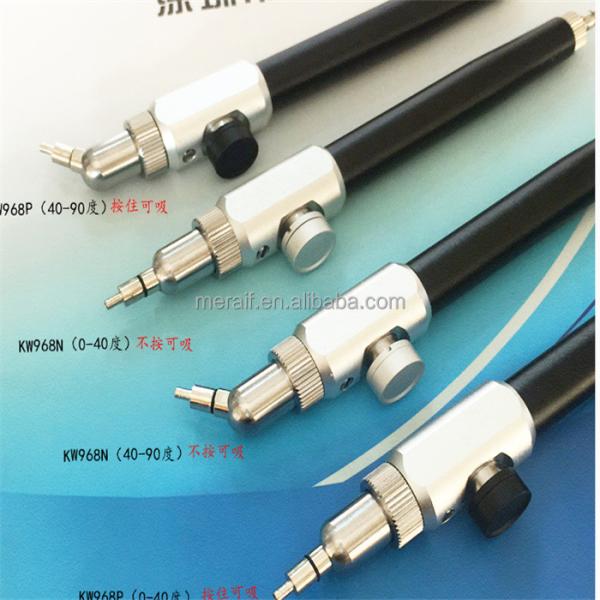

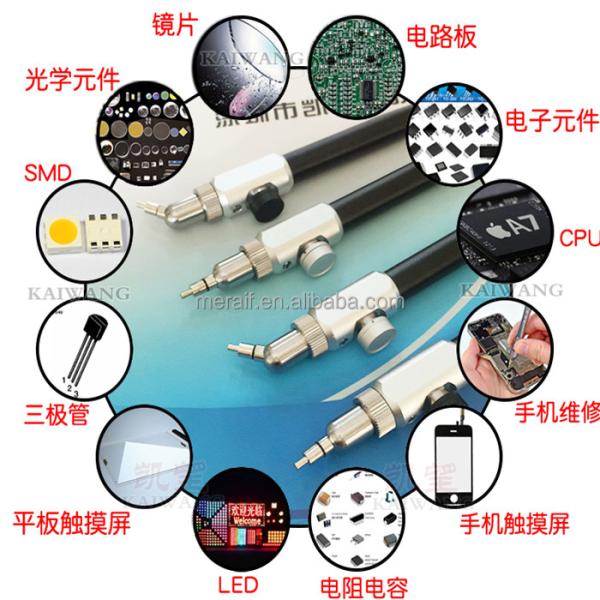

VAC Vacuum Tweezer Kit picture show:
