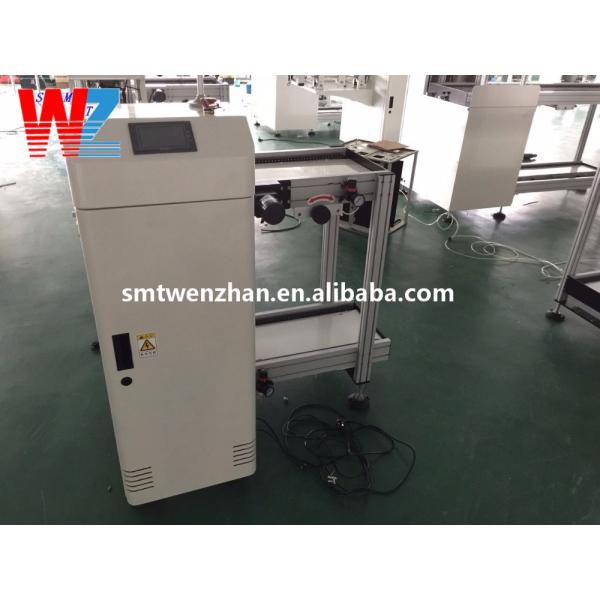

Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HY
Model Number :
PCB LOADER MACHINE
Supply Ability :
5000 Piece/Pieces per Week
Packaging Details :
1.wooden case 2.As your order
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit card
Delivery Time :
5-8 days
Product name :
SMT PCB LOADER MACHINE
Model number :
PCB LOADER MACHINE
Type :
SMT machine related products
Quality :
Top
After Warranty Service :
Video technical support, Online support
Warranty :
1 Year
package :
wooden case
Brand :
ODM
stock :
large
Delivery :
ups,dhl,fedex,as your order
Description

Smt Pcb Loader Machine Automatic Pcb Loader For Smt Pick And Place Machine

Pcb Unloader Factory Sale Fully Automatic Smt PCB Unload Machine

The PCB Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing
PCB’s out of a magazine onto the conveyor of the down-stream machine.
The PCB Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and
then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is
ready for the following unloading cycle.

Features
1. PLC Control system.
2. FUJI button, easily operation.
3. Four pitches selections( 10,20,30,40mm).
4. Direction from left to right or right to left(optional).

Description
HY-250LD
HY-330LD
HY-390LD
PCB delivery height
900 +/- 20mm
Direction
L-R/ R-L
PCB size(L*W)(MM)
50*50~350*250
50*50~455*330
50*50~530*390
Time Feed PCB
Approx 6 seconds or Specify
Magazine Change Over time
Approx 20 seconds or Specify
Indexing pitch
1-4(10mm pitch) or Specify
Power Source&Consumption
100. 230VAC 1Ph 300VA max
Air Pressure
4-6 bar
Air Consumption
10 ltr/min max
PCB Thickness
0.4mm min
Magazine Rack Size(L*W*H)(MM)
355*320*565
460*400*565
535*460*565
Machine Dimension
1100*780*1200
1400*860*1200
1500*920*1200
weight
140kg
180kg
220kg
