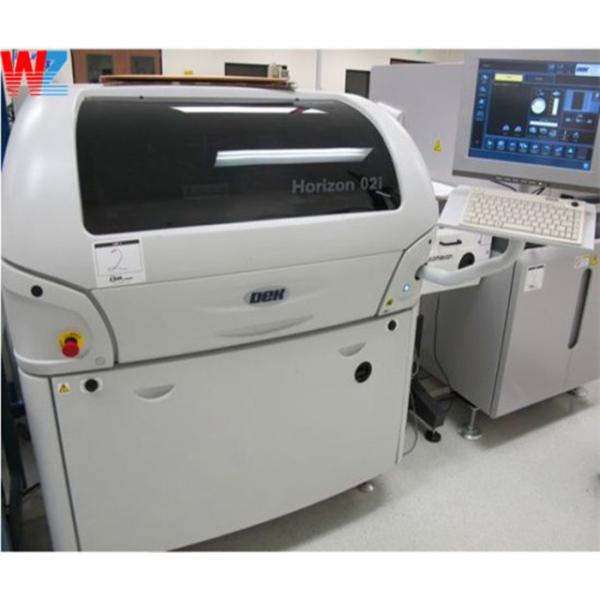

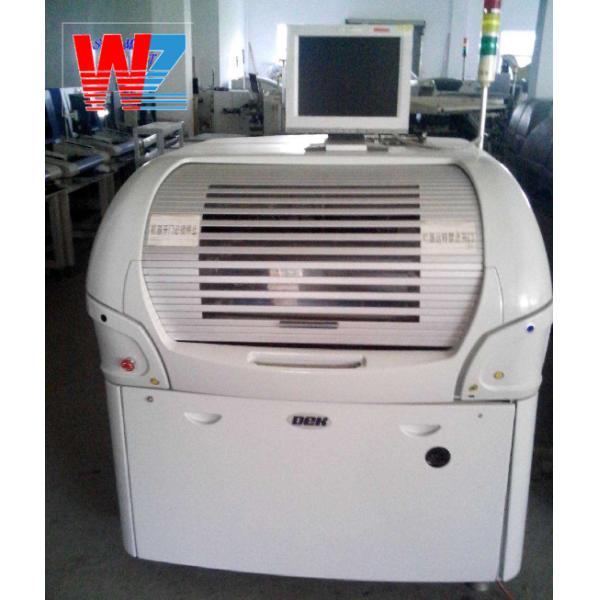

ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
Specifications
Place of Origin :
Japan
Brand Name :
DEK
Certification :
CE Certification
Supply Ability :
10 Piece/Pieces per Week
Packaging Details :
1.wooden case 2.As your order
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit card
Delivery Time :
5-8 days
Model number :
SMT DEK HORIZON 03iX screen printer
Product name :
SMT DEK screen printer
Plate Type :
Screen Printer
Condition :
New, new/used
Dimensions(L*W*H) :
430*225*160CM
Weight :
3500KG
Warranty :
1 Year
Quality :
Top
package :
wooden case
Type :
DEK Screen printer
Brand :
ODM
Delivery :
ups,dhl,fedex,as your order
Description

Low Price PCB Printing Machine Dek Horizon 02I Automatic Screen Printing Machine SMT DEK Screen Printer

Name: SMT DEK Screen printer
Model: DEK Screen printer Horizon 03iX
Specification: DEK Screen printer Horizon 03iX
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect

The DEK Horizon 02i printer delivers maximum flexibility and value through its high-end chassis, outstanding core capability, and flexible options that support access to powerful quality and productivity tools.


DEK’s Optimised Printer Frame chassis technology, shared by all Horizon platforms, delivers the inherent stability and reliability of a high-end machine. Horizon 02i’s motion control mechanisms ensure optimised speed and precision, including Cpk 1.6 @ 25µm full process capability.


By also combining rapid setup and changeover capabilities, Horizon 02i is perfect for prototyping and first article build at full-production yield levels. Plus, you can meet volume production demands, thanks to Horizon 02i’s Instinctiv™ user interface: clear graphics and Human Factors design maximise ease of use, while extensive on-board error recovery improves uptime.

HORIZON 02i HORIZON 02i
Transport System Specification
Type Single piece with 3mm round transport belts
Rail Justification Front fixed rail
Width Adjustment Programmable motorised rear rail
Min. Board Size (Handling) 50mm (X) x 40mm (Y)
Max. Board Size (Handling) 508mm (X) x 508mm (Y)
Transport Direction Left to right
Right to left
Left to left
Right to right
Substrate Location Patented over the top clamps
Underside Component Clearance 3mm to 42mm
Substrate Thickness 0.2mm to 6mm
Substrate Max. Weight 1kg
Substrate Warpage Up to 8mm including substrate thickness
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine
ODM Dek Screen Printer , Horizon 02I Automatic Screen Printing Machine

Horizon 02

iX platform

• Best-in-class print platform with future proof advantage

• Optimised printer frame technology and retrofittable productivity tools and options

6 sigma performance, Machine capability 2 Cpk @ +/- 12.5 um

Process capability 2 Cpk @ +/- 25 um,12 seconds cycle time

Hawkeye 750 Camera,0.1mm Fiducial Capture

Touch Screen,Screen Depth Adjuster

LAN,ISCAN,Board Clamp Regulator

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,

nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
