LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R
Specifications
Brand Name :
Jaguar
Model Number :
Chip Mounter RS-1R
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD78,000
Payment Terms :
T/T
Supply Ability :
20pcs per month
Delivery Time :
15-20days
Packaging Details :
vacuuum packing and wooden packing
Component size :
0201*~74mmx74mm/50mmx150mm
Component height :
25mm
Board size :
650x370mm (Single clamping)
Feeder inputs :
Max. 112(using RF feeder)
Average Mounting Speed :
31000CPH
Product Weight :
1700kg
Power Supply :
380AC 50HZ
Dimensions :
1500x1810x1400mm
Description

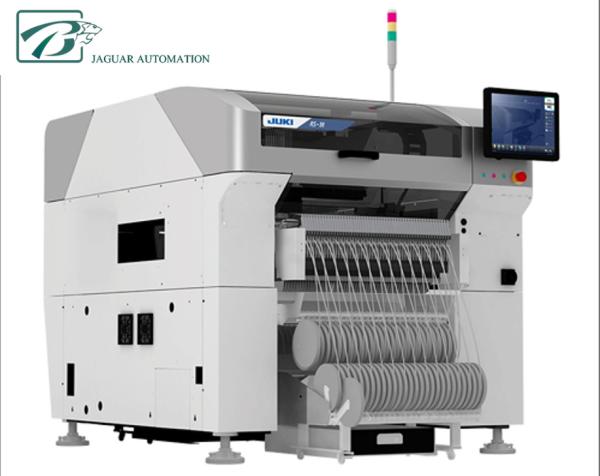

JUKI High Speed Compact Modular Mounter RS-1R

Features:

  1. Class leading speed, up to 47,000 cph
  2. Newly developed “Takumi Head” with changing recognition sensor height
  3. Optimum line balance and highest throughput
  4. Nozzle traceablity function
  5. Large nozzle ATC
  6. Wide component range from 0201(metric) to large connectors and ICs
  7. Optimal for LED placement

Specifications:

JUKI Fast Smart Modular Mounter RS-1R
Conveyor Specification Standard 150mm conveyor extensions, upstream and downstream 250mm conveyor extensions, upstream and downstream
Board size Minimum 50x50mm
Maximum 1 buffer 650x370mm (Single clamping)
950x370mm (double clamping) 1100x370mm (double clamping) 1200x370mm (double clamping)
3 buffers 360x370mm 500x370mm 600x370mm
Component height 25mm
Component size 0201*~74mmx74mm/50mmx150mm
Placement speed Optimum 47000CPH
IPC9850 31000CPH
Placement accuracy ±0.035mm (CPK≥1)
Feeder inputs Max. 112(using RF feeder)
Power supply AC200~415V(3 Phase)
Apparent power 2.2kVA
Operating air pressure 0.5±0.5Mpa
Air consumption 200L/min for internal vacuum generator, 50L/min with optional vacuum pump
Machine dimensions (WxDxH) 1500x1810x1400mm 1800x1810x1400mm 2000x1810x1400mm
Maxx(approximately) 1700kgs

1. For metric 0201 compliance please contact us.

2. Using RF(RF08AS) feeders

3. A transformer unit(option) is necessary except AC 200V

4. D dimension does not include the front operation monitor, H dimension does not include signal tower.

reflow oven,smd soldering,soldering machine,reflow soldering, reflow soldering oven,smt reflow oven,reflow machine,smd reflow oven,pcb oven,soldering oven,smd soldering machine,pcb reflow oven,cheap reflow oven,t962 reflow oven,convection reflow oven, reflow oven price,small reflow oven,reflow soldering machine,reflow oven kit,smd oven,smt oven,smd soldering oven,smt reflow,low cost reflow oven,smd reflow,surface mount soldering,lead free reflow oven, hot air reflow, infrared reflow, convection reflow, reflow station, reflow soldering oven price,infrared oven,smt reflow oven manufacturers, hot air reflow ovenKeywords:

Shenzhen JAGUAR Automation Equipment Co., Ltd. : To provide professional SMT automatic production line solution, The company specializes in SMT chip mounter(New Samsung: SM482, SM481, SM471, Decan-F2 etc); YAMAHA SMT machine (YAMAHA Chip shooter); JUKI chip mounter, Siemens SMT machine, Panasonic SMT Chip mounter, FUJI second-hand SMT machine. We are also sell printing machine, Point glue machine,Reflow soldering, Wave soldering machine, Automatic plug-in machines, stencil printer, Reflow oven, flow welding, AOI, X-ray, LED automatic die bonder etc.

LED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1RLED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1RLED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1RLED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1RLED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1RLED Bulb 2.2kVA 31000CPH PCB Assembly Chip Mounter JUKI RS-1R

FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?
1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.

5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
