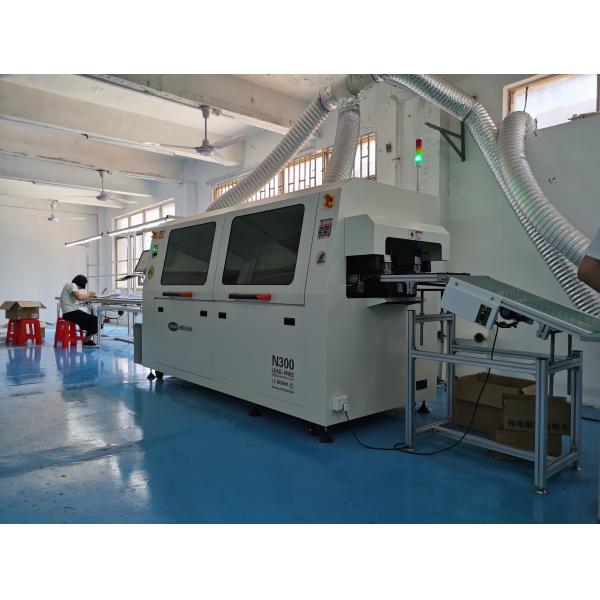

JAGUAR Lead-free Hot Air Wave Soldering Machine Model: N300

In recently, our company improved Wave Soldering Machine as below:

• Stepper motor driven flux sprayer, spray range is selective, save more flux.
• Flux recovery container drawer design, easy to clean.
• Conveyor passage add 1 more width ajustable screw, total 3 screws, the conveyor transmission is more stable, no PCB falling risk.
• Solder pot's inpeller material is cast iron, never corrode
• Solder pot with oxidation jacket, low solder dross

Specifications:

Introduction:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.

4. Flux recovery container drawer design, easy to clean.

5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.

6. Titanium solder fingers, high strengthened double v-groove with tin resistant

7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.

9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross

11. Timer startup feature for solder pot, solder melted in within 90 minutes.

12. Automatic finger cleaner equipped.

13. With black box memory function, the machine can always store the SPC data, improve work efficiency.

14. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Products:

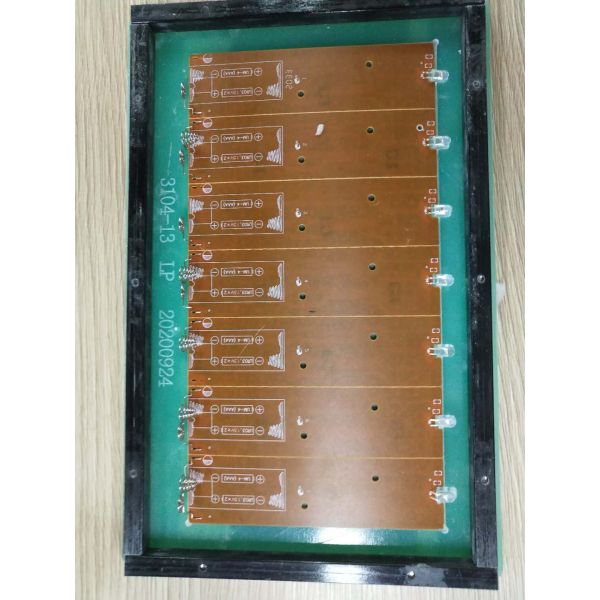

Remote Control PCB

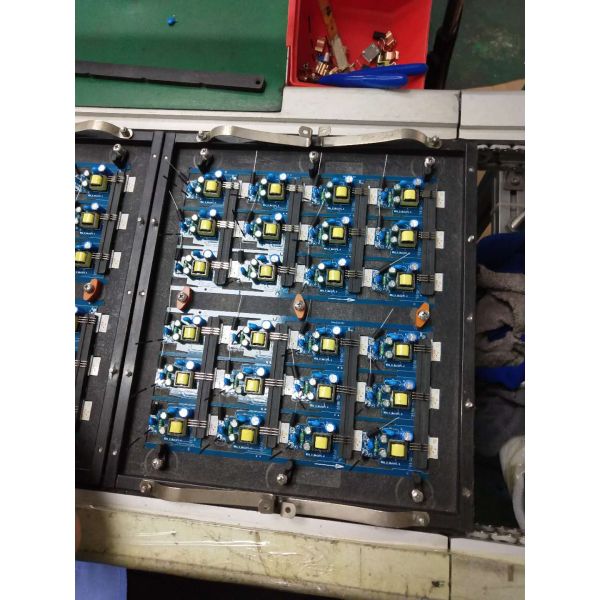

LED Driver PCB

Please contact me if you need any machine!
