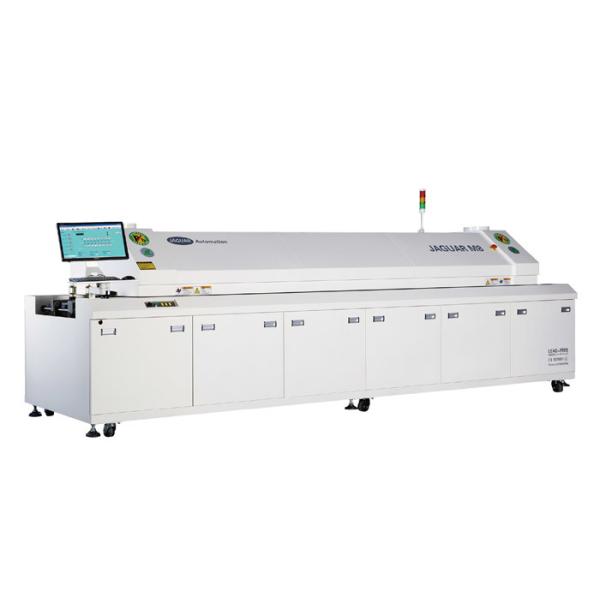

Stable Performance SMD Reflow Oven Machine PC Control Mesh Rail Conveyor
Stable Performance SMD Reflow Oven Machine PC Control Mesh Rail Conveyor
Specifications
Brand Name :
Jaguar
Model Number :
A8
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2 + Set + per Day
Packaging Details :
Wooden Case ; 4400x1000x1420mm ; 1Set Per 20GP
Mesh Wideth :
400mm
Max PCB Size :
350mm
Conveyor :
Mesh + Rail
Usage :
SMT ; LED ; SMD ; And Son on
Control :
PC
Name :
Furnace ; Welding Machine ; Heating Machine
Application :
PCB Assembly
Heating Method :
Up Hot Air Bottom Hot Air
Length of Heating Zone :
2800mm
Heating Zone :
8
Description

Economic Lead Free Hot Air Reflow Oven A8 Up 8 Hot Air Bottom 8 Hot Air Heating Zone PC Control Mesh + Rail Conveyor

  • JAGUAR's A8 Lead-free Hot Air Reflow Oven, is one of JAGUAR Economic Series, also is a Basic model of Reflow Oven.
  • Compact machine size can meet some customer's compact plant space.
  • Independent up and bottom heating for Pre-heating Zone, Soldering Zone and Cooling Zone
  • Independent recycle, Independent temp. control, Independent cooling zone
  • Modular design, convenient to maintenance
Model Jaguar A8
Heating System
Number of heating zones Top 8/Bottom8
Heating passage 2800MM
Heating style Top: Hot Air; Bottom: Hot Air
Cooling style Force air
Conveyor System
Max. Width of PCB 350mm
Mesh belt width 400mm
Conveyor Direction L→R(or R→L)
Process Height 900±20mm
Conveyor type Mesh + Rail
Conveyor speed 0-1000mm/min
Fixed track Front track fixed(option: rear track fixed)
Control System
Power supply 5 line 3 phase 380V 50/60Hz
Total power consumption
Startup power consumption 22kw
Steady consumption 4-7KW
Ramp Up time About 25 mins
Temp. setpoint Room temperature-300℃
Temp. control method PC
Temp. control precision ±2℃
Temp. deviation on PCB ±2℃
Data storage Process Data and Status Storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temp. (overtemp/low temp.)
Board dropped alarm Tower light: Amber-warning, Green-normal, Red-abnormal
General
Dimension(L*W*H) 4200×800×1320mm
Weight 800KG
Color Computer grey
Advantages
The Unique Advanced Long Life Heating System
1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving.
2. The peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency.
3. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely
4. Using special high temperature barrier structure for heat preservation and special iron in heating passage.
5. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.
6. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.
