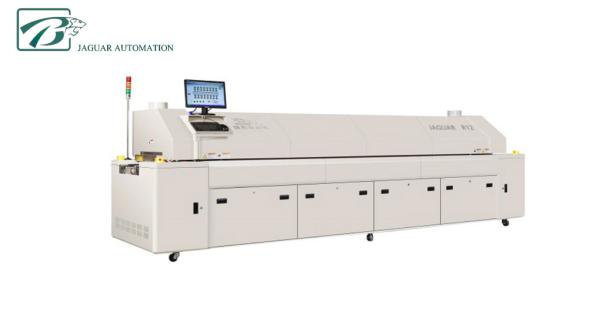

Powerful Smd Soldering Oven , Heat Treatment Machine For PCB Assembly
Powerful Smd Soldering Oven , Heat Treatment Machine For PCB Assembly
Specifications
Brand Name :
Jaguar
Model Number :
R12
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2 + Set + per Day
Packaging Details :
Wooden Case ; 6500x1520x1690mm ; 1Set Per 40GP
Mesh Width :
500mm
Max PCB Size :
450mm
Conveyor :
Mesh Belt and Chain Conveyor
Usage :
SMT ; LED ; SMD ; And Son on
Control :
PID + PC
Name :
Furnace ; Welding Machine ; Heating Machine
Application :
PCB Assembly
Heating Method :
Up Hot Air Bottom Hot Air
Heating Zone :
8
Other :
Accept Customize
Description

High-end Lead Free Hot Air Reflow Oven R12 Up 12 Hot Air Bottom 12 Hot Air Heating Zone PC Control

JAGUAR R12 as a member of JAGUAR R High-end series, which was designed for high standard applications, such as Semi-conductor, automobile, military related & etc…, which provides optimized lead-free processing, with high precision of heating and cooling, low power & nitrogen consumption, R series is favored by senior application customers.

Model Jaguar R12
Heating System
Number of heating zones Up 12 Bottom 12
Heating passage 4640MM
No. of Cooling Zone Up 3 Bottom 3
Cooling style Force cooling air
Conveyor System
Max. Width of PCB 450mm
Mesh belt width 500mm
Conveyor Direction L→R(or R→L)
Process Height 900±20mm
Conveyor type Mesh Belt and Chain Conveyor
Conveyor speed 0-1000mm/min
Fixed track Front track fixed(option: rear track fixed)
Control System
Power supply 5 line 3 phase 380V 50/60Hz
Total power consumption
Startup power consumption 42kw
Steady consumption 6-9KW
Ramp Up time About 25 mins
Temp. setpoint Room temperature-300℃
Temp. control method PID close loop control + PC
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage

Process Data and status storage

(80 GB)

Nozzle plate 8mm thick aluminum plate copper
Abnormal Alarm Abnormal temp. (overtemp/low temp.)
Board dropped alarm Tower light: Amber-warning, Green-normal, Red-abnormal
General
Dimension(L*W*H) 6300×1320×1490mm
Weight 2450KG
Color Computer grey
Characteristics
1. Totoally meet various requirements for lead free processing
2. Windows XP operation system, Chinese/English can be switched online
3. Patented air management system to make hot air convection more efficient and faster thermal compensation
4. PLC+PID closed loop control to achieve high precise temperature control and repeatable profiles
5. Dual temperature sensors and dual safely control, over temperature alarm, abnornaml speed alarm and Board dropped alarm
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost

Smart Comprehensive function and friendly software

ØDual temperature sensors and dual safety control, over temperature alarm, abnormal speed alarm and board dropped alarm
ØModular design to get quick and simple maintenance to reduce customer's maintenance time and cost
ØAutomatic PCB throughput sensors
ØFriendly user interface
