Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
Specifications
Brand Name :
JAGUAR
Model Number :
R12
Certification :
CE ISO
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2 + Set + per Day
Packaging Details :
Wooden Case ; 6500x1520x1690mm ; 1Set Per 40GP
Max PCB Size of Single Lane :
50-500mm
Max PCB Size of Dual Lane :
300mm
Conveyor :
Mesh Belt and Chain Conveyor
Usage :
SMT ; LED ; SMD ; And Son on
Control :
PID + PC
Name :
Furnace ; Welding Machine ; Heating Machine
Application :
PCB Assembly
Heating Method :
Up Hot Air Bottom Hot Air
Heating Zone :
12
Other :
Accept Customize
Description

R12 High-end Hot Air Lead-free Reflow Oven With Central Support Model No. R12

JAGUAR R High-end series was designed for high standard applications, such as Semi-conductor, automobile, military related & etc…, which provides optimized lead-free processing, with high precision of heating and cooling, low power & nitrogen consumption,
R series is favored by senior application customers.

Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine

Specification:

Model JAGUAR R12

Heating System

 Number of heating zones Top 12/Bottom 12
Number of cooling zones Up 3 Bottom 3
Heating passage 4600mm
Heating style Hot air
Cooling Style Air Oven: Forced air; Nitrogen Oven: Water Chiller
Exhaust Volume 10m³/min * 2 vanes

Conveyor System

 Max. Width of PCB 420mm
Mesh belt width 500mm
Conveyor Direction L→R(or R→L)
Process Height 900±20mm
Conveyor Style Mesh and chain
Conveyor speed 0-2000mm/min
Auto/manual Lubrication Standard
Fixed track Front track fixed(option: rear track fixed)
Product clearance Top and bottom 25mm

Control system

 Power supply 5 line 3 phase 380V 50/60Hz
Total consumption 60kw
Startup consumption 58kw
Steady consumption 12KW
Ramp up time About 20 mins
Temp. set point range Room temperature-300℃
Temp. control method PID close loop control & SSR driving
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temp. (overtemp/low temp.)
Board dropped alarm Light tower: Amber-warming, Green-normal, Red-abnormal

General

 Dimension(L*W*H) 7200×1350×1550mm
Weight 2800KG
Color Computer grey


Option: Central support system to prevent the deformation of PCB board.

Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine

Advantages

Reliable Heating Zone Structure

※ Patented air management system to make hot air convection more efficient and faster thermal compensation

※ Nozzle plate made from 8mm thick aluminum plate

※ The longer heating zones to ensure perfect profile matching, meantime can get high production efficiency

Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine

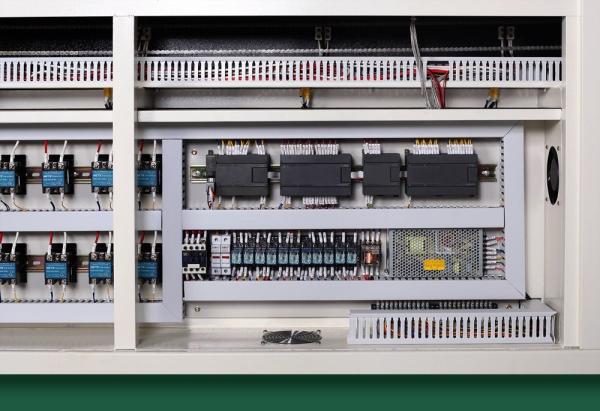

Reliable Control system

※ Siemens PLC+Industrial PC with precise controlling unit and stabilized performance

※ PID close loop control + SSR driving to ensure the temp. control precision up to ±1°c and the temp. Deviation on PCB up to ±1.5°c

Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine

Reliable Conveyor System

※ The rail is dealt with hardened process to make it more stability

※ The conveyor chain adpoted with single Pin-plate design, simple and pratical

Lead Free Benchtop Reflow Oven , Customized Size Pcb Reflow Oven Machine
