Full Auto Led Screen SMT Stencil Printer 4 - 6Kg / Cm2 Air Pressure Heavy Weight
Full Auto Led Screen SMT Stencil Printer 4 - 6Kg / Cm2 Air Pressure Heavy Weight
Specifications
Brand Name :
Jaguar
Model Number :
F1500
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Sets/month
Delivery Time :
3-7days
Packaging Details :
Wooden packing
Air Pressure :
4~6Kg/cm2
Air Consumption　 :
About 0.07m3 /min
Power Supply :
AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions :
2520(W) x 1220(D) X1500(H)mm (excluding the height of indicating lighthouse)
Weight :
Approx:1500Kg
Operation Temperature :
-20°C ~ +45°C
Operation Humidity :
30%~60%
Name :
Solder Paste Printer
Description

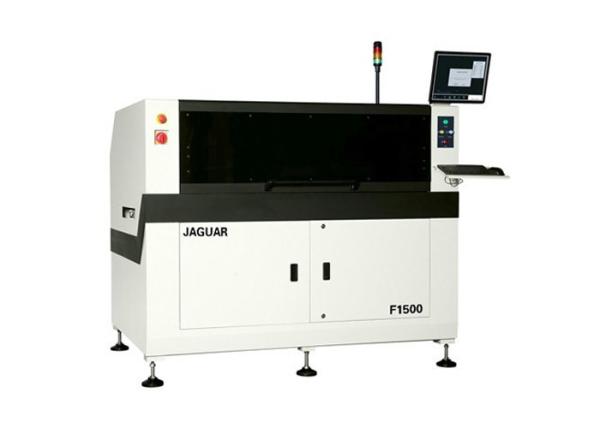

Full Auto Led Screen Printer Jaguar F1500

F1500 an extra length printing robot designed for screen printing or stencil printing in LED Lighting products manufacturing.

Specification
* The following data is measured under environment temperature of 25 ℃ and humidity of 60%.

Items 　 Parameters
Repeat Position Accuracy ±0.01mm
Printing Accuracy　 ±0.025mm
Printing Speed/Cycle Time <15s (Exclude Printing & Cleaning)
Products Changeover　 <5Min
Screen Stencil Size/Min 1100mmX300(Standard)；730mm X 300mm(Optional, pressing plate on guide rail shall be replaced)
Screen Stencil Size/Max 1500mm X 750mm
Screen Stencil Thickness 20mm ~ 40mm
PCB Size/Min 80X50mm
PCB Size/Max 1500X340mm
PCB Thickness 0.8~6mm
PCB Warpage Ratio ＜1%(Based on diagonal length)
Bottom of Board Size　 15mm (distance from pins to PCB)
Edge of Board Size　 3mm (distance before PCB clamping)
Transport High 900±40mm
Transport Direction Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed 50-1200mm/sec programmable control
Board Location Support System Magnetic pin/Side support block/Flexible automatic pin(optional)
Clamping System Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting
Print head Programmable motor driven print head (pneumatic control print head: optional)
Squeegee Speed 10~200mm/sec
Squeegee Pressure 0-15kg programmable control
Squeegee Angle 60°(Standard )/55°/45°
Squeegee Type Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee .
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning Method Dry-type, wet-type, optional vacuum-type
Table Adjustment Range X:±10mm;Y:±10mm;θ:±2°
Type of Fiducial Mark　 Standard geometry shape of fiducial point, bonding pad / stencil hole
Camera System Single digital camera with upward/downward vision system

Full Auto Led Screen SMT Stencil Printer 4 - 6Kg / Cm2 Air Pressure Heavy Weight

Product Features:

  1. Support wide spectrums of PCB size from 100mm x 50mm to 1500mm x 350mm and PCB thickness from 0.6mm to 6mm.
  2. High printing resolution:
  1. High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.03mm.
  2. Support glue printing
    1. Automatic control improves production efficiency, controls quality and saves production cost:
  1. Automatic stencil positioning;
  2. Automatic PCB location calibration
  3. Automatic adjustment of squeegee pressure;
  4. Automatic printing;
  5. Automatic stencil cleaning (dry-type, wet-type);
    1. Adopt company independently developed suspended print head with programmable pressure adjustment. Support on-line real time pressure feedback and automatic squeegee pressure balancing.
    2. Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
    3. Multi-functional PCB fixed positioning system, for convenient and accurate PCB positioning.
    4. Upward and downward visual positioning.
    5. Built-in image processing system;
    6. Support 2D, SPC functions.
  1. Applicable pitches of Components
    1. SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
    2. IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball 0.2 mm.
    3. Printing size:100mm x 50mm ~1500 mm x 340 mm;
    4. PCB thickness: 0.6 mm ~ 6 mm
    5. FPC thickness: less than 0.6 mm (excluding jig)
  2. Applicable PCB Types

Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products.
