Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
Specifications
Brand Name :
JAGUAR
Model Number :
BC-350
Certification :
CE ISO
Place of Origin :
SHENZHEN
MOQ :
1
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
100 SET PER MONTH
Delivery Time :
3-7days
Packaging Details :
WOODEN BOX
Price :
Negotiation
Dimensions :
Length×690×910(mm)
PCB Width :
50-350(mm)
PCB Direction :
L-R or R-L
Conveyor Speed :
0.5-20M/Min
Power :
1P AC 110/220V 50/60HZ
Weight :
Approx.60Kg
Description

Jaguar PCB Shuttle Conveyor 0.5-20M/Min With Inspection / Loader Unloader Machine JB350 for SMT Production Line

Features:

1. Modular design
2. Iron square tube framework, powder coating on surface
3. Ergonmic design table for parts place and arm rest
4. standard SMEMA
5. Variable speed control
6. Width adjustbale

Specification:

Brand JAGUAR
Model BC-350
Outer Dimension 500*700*940mm
PCB Width 50~350mm
PCB Direction L to R or R to L
Speed 0-2000 mm/min
Motor 1P AC220V 50/60HZ 15W
Power Supply 1P AC220V 50/60HZ
Rail length up to your request
Control System PLC
Foot switch standard
Lighting Option
SOP Rack Option
Platform material ESD Rubber Mat
Communication plug SMEMA Signal plug for up & down line
Weight Approx.50KG

Parts List:

Name Brand
Motor drive VTV
Gear box VTV
Speed controller VTV
Bearing NSK Japan
Photoelectronic switch SICK Germany
Width adjustment Stainless Steel ball screw
Transmission shaft Six stainless steel angle
Structure Aluminum frame

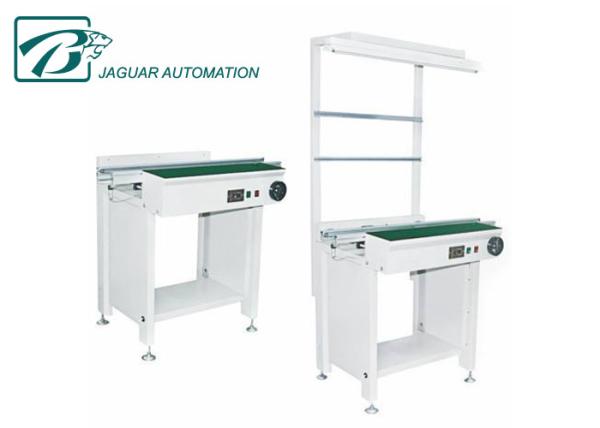

SMT Conveyor without the light:

SMT Conveyor with the light:

SMT Conveyor between the pick and place machine and reflow oven machine:

Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price

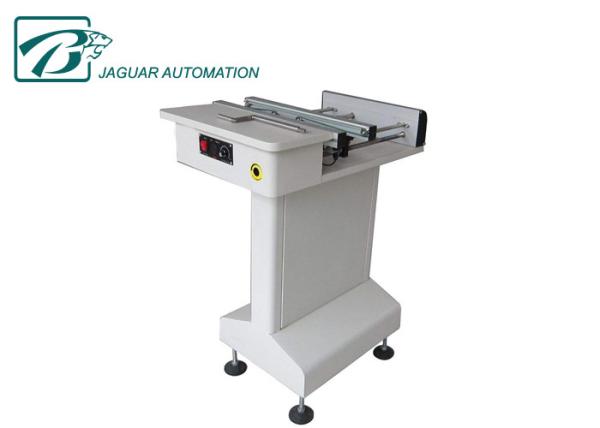

More smt peripherals:

Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price

SMT Conveyor in the customer factory:

Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price

Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price

SMT Conveyor in the exhibition:

Jaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good PriceJaguar Inspection Belt Conveyor JB350 for SMT Production Line with Good Price
