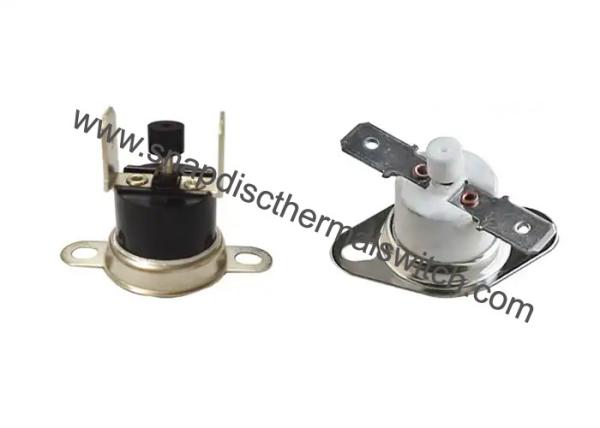

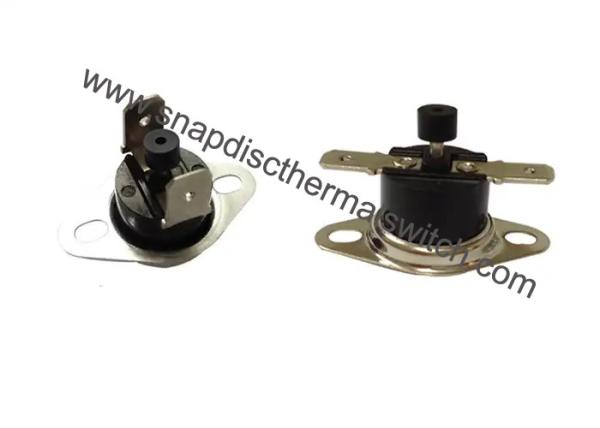

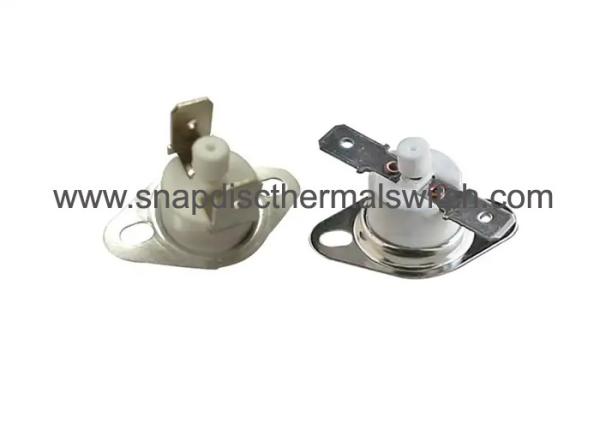

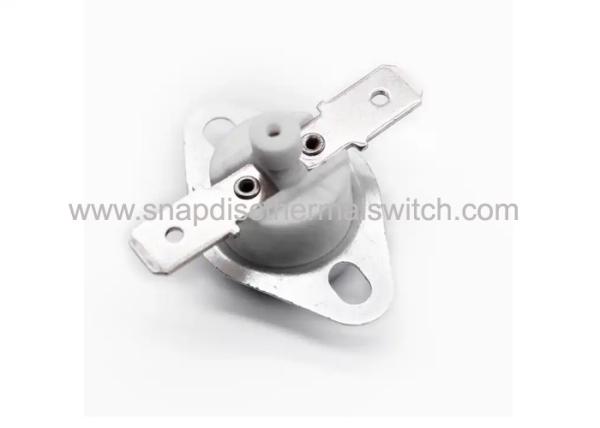

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Specifications
Brand Name :
Yusheng
Model Number :
KSD301
Certification :
UL, VDE, TUV, CB, CQC
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 Piece/Pieces per Month
Delivery Time :
5-7 working days
Packaging Details :
Polybag+carton
Name :
Thermostat
Model :
KSD301
Life Cycle :
100000 Times
Size :
8.4*6.4*4.3mm or others
Voltage :
250V
Reset Type :
Auto Reset/Manual Reset/Power-off reset
Temperature range :
-10~300℃
Contact Type :
Normally Closed or Normally Opened
Material of shell :
Black bakelite or white ceramic
Customized :
Yes
Description

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle


Product Discription:

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Product Feature:

1.Round volume with mounting ring, easy to install,
2.High service life, high current bearing,
3.Terminal opening is flexible and varied,
4.The installation method can be customized by customers.

Electrical Specifications:
24VDC/48VDC 10A/16A
125VAC/250VAC 10A/16A

Technical Parameters:
Contact type: normally open/normally closed
Range of action: -10℃-270℃

Temperature Tolerance: ±5℃/±10℃
Contact resistance: ≤50mΩ
Dielectric strength: AC50Hz 1800V/min No breakdown blinging(normal state)
Action life: ≥100,000 times

NC:normally closed ,contact open when temperature rises to set point

NO:normally open,contact closed when temperature rises to set point

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Dimension

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

  • Terminal angle can be made according to customer's requirement
  • Reset temperature can be made according to customer's requirement

Shell material:
Black bakelite/white ceramic

Installation ring type:
Fixed ring/movable ring/without ring

Customizable reset methods:
Automatic reset/manual reset/no reset/power off reset

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Application Range:

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

  • Water heater ,Clothes Dryer, Fireplace,Hair Dryer,Shredder
  • Soybean Milk Machine,oaster, Electric Kettle,Microwave Ovens , Coffee Maker ,Water Dispenser

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle

Manually Reset Bimetal Thermostat KSD301 Thermostat 16A 250V , 10A Thermal Switch for Electric Kettle
