250V 10A 160 Deg C High-precision Temperature Switch For Circuit Protection

Quick Detail:

Description:

KSD9700 is a high-precision temperature switch for circuit protection.

This termperature switch / thermal protector is composed of two different alloys, which will generate heat after passing current. Due to the different thermalexpansion coefficients of the two different alloys, the alloy is bound to bend in one direction,The bending speed is proportional to the amount ofcurrent passing and the ambient temperature. This protects the electrical equipment.

Working principle: when the temperature rises to a certain value, the bimetal strip will instantly jump off and the contact will move quickly to disconnect the circuit. When the temperature falls to a certain value, the bimetal strip will be reset and the contact will return to the original state to achieve the purpose of switching the circuit. Its light weight, compact design maintains the lightweight, sealed housing of the whole device, and is resistant to drying, maintaining the accuracy and high reliability of disconnection and reset throughout its life.

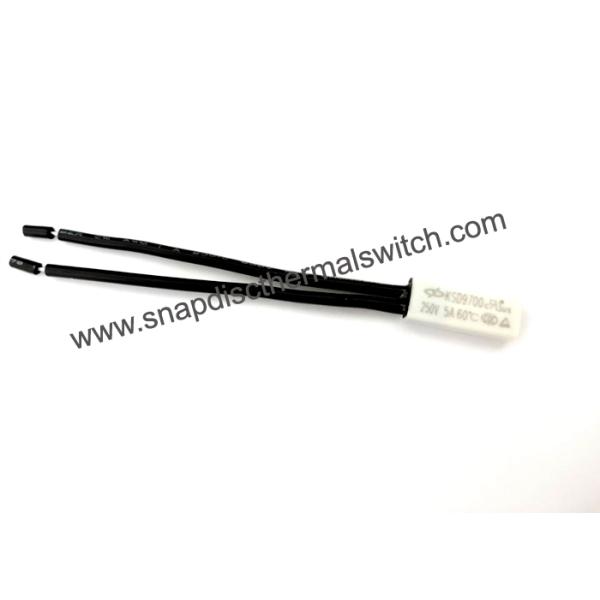

KSD9700 series thermal protector

KSD9700 thermal protector working principle of transformer temperature protector,current throung the double metal reeds and two contacts,Once the electrical working is abnormal and cause to high temperature or high current.the over heat of the equipment will cause the bimetal promptly action and cut off the power.when the temp down to reset temp.the contact will get on again.

KSD9700 temperature protector with special bimetal reeds,suits series of wide application,reliable performance.it is a miniature,fast action,thermal dynamic device,in thermal protection science and technology field,it is a widely used protection components.

Switch Actions

Automatic Reset-Can be built to either open or close its contacts on temperature rise.

Specifications:

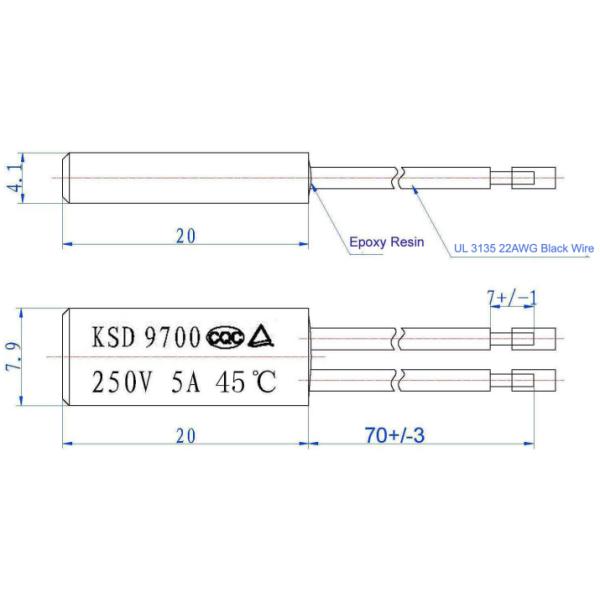

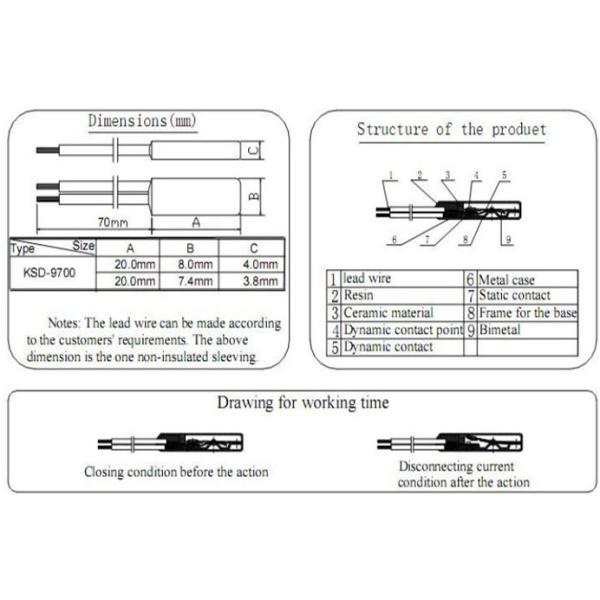

1. Dimensional Outline

3. Action Temperature Table

Applications:

1. Motors

2. Transformers

3. Laminator

4. Electric Tools

5. Electric Blanket
6. Permanent split capacitor motor

7. Commentator for fluorescent lamp,
8. Fluorescent lighting ballasts
9. HID ballasts
10. Recessed lighting fixtures
11.Battery packs
12. Vacuum cleaners

KSD9700 bimetal switch thermal protector competitive advantages:

1. Small size.
2. Positive make and break with Klixon snap action disc.
3. Repeatable temperature performance over life.
4. Wide selection of leads and insulating sleeves.
5. Cadmium free contacts.

7. Lead wires can be customized
