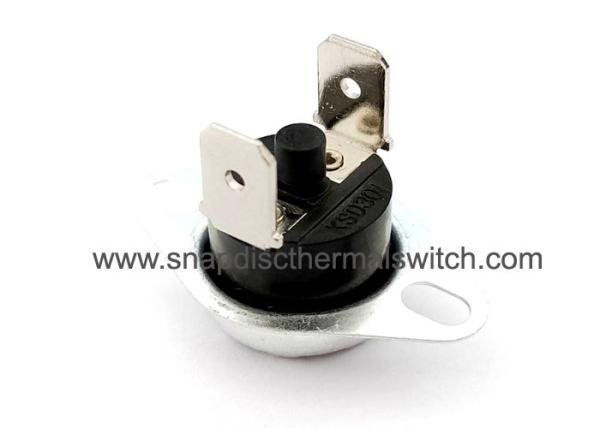

Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant
Specifications
Model Number :
KSD301
Certification :
CQC,TUV,UL,VDE,ROHS,REACH
Place of Origin :
China
Payment Terms :
T/T, Western Union, MoneyGram
MOQ :
1000PCS
Price :
Negotiable
Supply Ability :
1,000,000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
1000/2000PCS per Carton, Carton Size:280*260*320mm
Model :
KSD301
Reset Type :
Manual Reset
Rated Volts & Amps :
250V AC 10A/16A
Life Cycle :
100,000 cycles
Body Material :
Bakelite or Ceramic
Contact Resistance :
≤50mΩ
Description

KSD301 250V10A/16A Manual Reset Snap Disc Thermal Switch with TUV,UL,VDE,ROHS

Quick Detail:

Model KSD301
Reset Type Manual Reset
Single Pole,Single Throw(SPST)
Body Material: Bakelite or Ceramic
Rated Voltage & Current 250V AC 10A/16A
Contact Type Normally Closed(Open on Rise) or Normally Open(Close on Rise)
Operating Temperature Range 0～150℃ (Bakelite Body),0～250℃ (Ceramic Body)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH


Description:

KSD301 snap disc thermal switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element.KSD301 Manual Reset type need to be reseted by manual. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. Manual Reset type need to be reseted by manual.It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.

Applications:
● Kitchen Appliances: Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.
● Household Appliances: Electric Water Boiler, Room Heater,Waffle Baker etc.

Specifications:

1. Dimensional Outline

Single Pole Manual Reset Thermal Switch 250V10A/16A UL ROHS Compliant


2. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ Reset by Manual 145±5℃ Reset by Manual
50±3℃ 150±5℃
55±3℃ 155±5℃
60±3℃ 160±5℃
65±3℃ 165±6℃
70±3℃ 170±6℃
75±3℃ 175±6℃
80±3℃ 180±7℃
85±3℃ 185±7℃
90±3℃ 190±7℃
95±3℃ 195±7℃
100±4℃ 200±8℃
105±4℃ 205±8℃
110±4℃ 210±8℃
115±5℃ 215±10℃
120±5℃ 220±10℃
125±5℃ 230±10℃
130±5℃ 240±10℃
135±5℃ 250±10℃
140±5℃ 　 　


Competitive Advantage:
1. Small size and expedient installation
2. High temeprature resistance
3. High reliability
4. Long life cycles
5. ROHS compliant
6. Wide application

Tag:
Snap-action Thermostat, Temperature Switch, Temperature Cutoff Switch, Thermal Cutout Switch, Temperature Controller
