General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
Specifications
Brand Name :
Yusheng
Model Number :
PE8000-10-1
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Week
Delivery Time :
5-8 Working Days
Packaging Details :
Outer strong A-A 5 layer carton parcking with shock absorbing PE foam filling to protect the EMI/EMC filters,customized packaging also acceptable.
Model :
PE8000-10-01
Type :
EMI EMC Filter
Rated Voltage :
120/250VAC
Rated Current :
6A~25A
Operating Frequency :
50/60Hz
Class :
Single Phase Single Stage
Nominal center frequency :
50/60Hz
Test Voltage(1 min) :
L-L:1450VDC L-G:2000VAC
Transfer Function :
Low Pass
Input impedance :
100db
Certificate :
Metal
Package tyep :
Surface Mount
Outer Package :
Carton
Description

PE8000-10-1 10A250V General Purpose IEC Inlet EMI EMC Filter for TV Power Supply

Quick Details:

Product NameIEC Inlet Filter
ModelPE8000-10-01
Rated Voltage120/250VAC
Rated Current1A~10A
Operating Frequency50/60Hz
Temperature rangeHPF 25/085/21
Test Voltage(1 min)Line to Ground :2000VAC
Line to Line :1450VDC


Description:

EMI MEC filter, also known as electromagnetic interference filter, network filter, network noise filter and so on, or collectively known as EMI filter.The power supply EMI filter is a low-pass filter, which transmits the dc power, 50Hz or 400Hz power to the equipment without attenuation, greatly attenuating the incoming EMI signal through the power supply, and protecting the equipment from its harm.At the same time, EMI signals generated by the equipment can be effectively controlled to prevent it from entering the power grid, polluting the electromagnetic environment and harming other equipment.EMI filter of power supply is an indispensable component to help electromagnetic equipment and systems meet electromagnetic compatibility standards, such as IEC, FCC, VDE, mil-std-461, GB9254 and GB6833.PE8000-10-01 rated currents from 1A to 10A. It has rear/front or snap-in mounting.(S and S1 type). Optional medical versions (B type) comply with the requirements of IEC/EN 6060-1 for creepage and clearance,leakage current and high potentian testing.

Specifications:

1. Outline Drawing and Dimensions:
All dimensions in mm; 1 inch=25.4mm

General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing

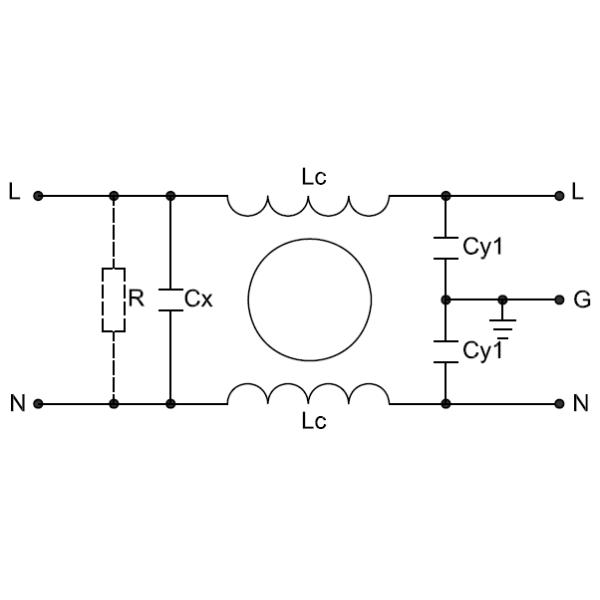

2. Electrical Schematic:
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing

3. Filter Selection Table:

FilterRated Current(A)Rated Voltage(V)Leakage Current(mA)Input/Output Connections
PE8000-1-011120/2500.501
PE8000-3-013120/2500.501
PE8000-6-016120/2500.501
PE8000-10-0110120/2500.501
PE8000S-1-011120/2500.501
PE8000S-3-013120/2500.501
PE8000S-6-016120/2500.501
PE8000S-10-0110120/2500.501
PE8000S1-1-011120/2500.501
PE8000S1-3-013120/2500.501
PE8000S1-6-016120/2500.501
PE8000S1-10-0110120/2500.501


4. Insertion Loss in dB

General Purpose EMI Power Line Filter 100DB Input Durable Metal HousingGeneral Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
General Purpose EMI Power Line Filter 100DB Input Durable Metal HousingGeneral Purpose EMI Power Line Filter 100DB Input Durable Metal Housing


5. EMI EMC Filter Packaging:
Packaging Details
1. Inner: blow moulding plate
2. Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
3. Customized packaging acceptable
Port: Shenzhen,China
General Purpose EMI Power Line Filter 100DB Input Durable Metal Housing
Application:
1. Single-phase power supplies,switch-mode power supplies.
2. Small to medium-sized machines and household equipment
3. Protable electrical and electronic equipment.
4. Test and measurement equipment.
5. Medical equipment

Competitive Advantages:
1. Compact unit,light weight,low price,easy to install.
2. Rear/front or snap-in mounting.(S and S1 type)
3. High quality components ensure the safrty and reliability of filters.
4. Optional medical versions(B type)comply with the requirements of IEC/EN60601-1 for creepage and clearance,leakage current and high potentian testing.
5. Custom design acceptable
